  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

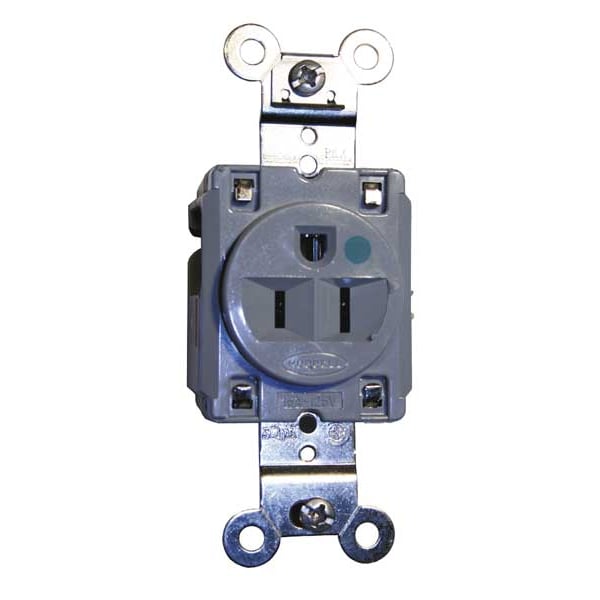

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8310GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8310GY

  • Zoro # G0837943

product price:  $30.85
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8310GY
Zoro #
G0837943
UPC #
783585016306
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.63 in
Minimum Wire Size
12 AWG
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard Sized Product
Length
3.28 in
Dimensions
3.28 in x 1.63 in x 1.19 in
Wire Size
#12 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy Use Hospital Grade
Number of Gangs
1
Material
Nylon/Reinforced Thermoplastic Polyester
NEMA Configuration
5-20
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
No
Weather Resistant
No
Outlet Type
Single
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Single Receptacles
Voltage
125VAC
Tamper Resistant
No
Surge Suppression
No
Type
Single
AFCI
No
Horsepower Rating
1 hp
UL 94 Flammability Rating
5VA, V-0, V-2
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Polarized
Yes
Surge Protection
No
For Location
Indoor
Grade
Hospital Grade Fed. Spec.
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Nylon
Shrouded
No
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Poles and Wires
2 Pole, 3 Wire
Device Color
Gray
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Extra Heavy Duty Hospital Grade
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1
Nema Rating
5-20R
Style
Finder Groove Face
Series
Hospital Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting

Description

The HUBBELL 5-20R Hospital Grade Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for hospital-grade applications requiring heavy-duty performance, this receptacle features a grounding design and supports both back and side wiring with screw terminals. It meets UL requirements for hospital devices; includes a nickel-plated brass integral ground strap and bypass contact design.


Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC

  • NEMA Configuration: Single outlet, NEMA 5-20R

  • Mounting Type: Flush mount; includes mounting hardware

  • Wiring Method: Back and side wired screw terminals accommodate #12–#10 AWG copper wire

  • Contact Material: Brass contacts with nickel-plated bypass contact design intended to maintain consistent contact pressure

  • Grounding System: Four-point grounding system designed to support low-resistance ground continuity

  • Material Construction: Nylon/reinforced thermoplastic polyester housing; deep face housing constructed from materials rated as impact resistant

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
