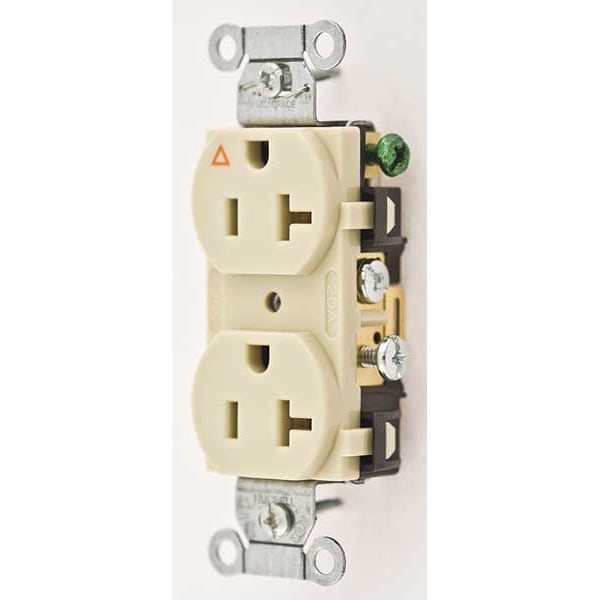

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground
Mfr # IG20CRI
Zoro # G3408553
product price: $8.99
/eaKey Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IG20CRI
Zoro #
G3408553
UPC #
783585147642
Country of Origin
China
Dimensions
Dimensions
1.32 in x 1.06 in x 3.28 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Length
1.32 in
Width
1.06 in
Height
3.28 in
Description
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Triangle marking on face indicates isolated ground
• Smooth face
• Triple wipe contacts
• Triangle marking on face indicates isolated ground
• Smooth face
• Triple wipe contacts
