  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

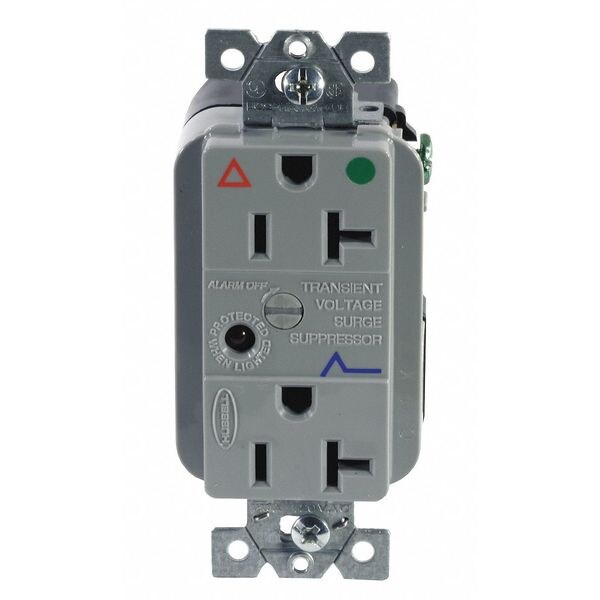

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG8362GYSA - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG8362GYSA

  • Zoro # G6461147

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG8362GYSA
Zoro #
G6461147
UPC #
783585960470
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Face Plate Width
1.3 in
Overall Depth
4 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Decorator
Mounting Type
Flush
Power Indicator
Yes
Corrosion Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
Yes
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back
Tamper Resistant
No
Wiring Method
Back
Special Features
Audible Alarm
Weather Resistant
No
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
Nylon
Voltage
125VAC
NEMA Configuration
5-20
HP
1 hp
Application Environment
Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Polarized
Yes
NEMA Enclosure Rating
1
Minimum Operating Temperature
32 Degrees F
UL 94 Flammability Rating
V-2
For Location
Indoor
Housing Material
Nylon
Surge Protection
Yes
Visual Indicator Lights
Power Connected
Cover Type
No Cover
GFCI
No
Grade
Hospital Grade Fed. Spec.
AFCI
No
Connection Orientation
Straight
Maximum Operating Temperature
140 Degrees F
Shrouded
No
Horsepower Rating
1 hp
Device Grade
Isolated Ground
Poles and Wires
2 Pole, 3 Wire
OEM Brand Name
Hubbell Wiring Device-Kellems
Frequency Rating
60 Hz
Material - Mounting Hardware
Mounting Screws
Indicator(s) Type
LED and Audible Alarm
Performance
Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Outlet
Straight Blade
Style
Isolated Ground
Series
Hospital Grade
Application
Decorator Duplex with Light and Alarm
Response Time
5
Nema Rating
5-20R
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)

Description

The HUBBELL 20A, 125V AC Decorator Duplex Outlet is a flush mount isolated ground receptacle rated for use with surge suppression in indoor applications. It features a duplex configuration with straight blade connections and is rated for hospital grade use. The outlet includes both LED power indicators and an audible alarm to signal power status and surge events, providing LED and audible indicators for power status and surge events.


Key Features of the HUBBELL Decorator Duplex Surge Protection Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC single phase operation.

  • Surge Protection: Integrated surge suppression using two MOVs; see specifications for transient voltage ratings.

  • Isolated Grounding: Isolated ground design separates grounding contacts from the mounting strap.

  • Indicator Type: Includes both LED visual indicator and audible alarm that indicate power presence or surge activity.

  • Material Construction: High-impact nylon face; conformally coated PC board

  • NEMA Configuration: Accepts NEMA 5-20R plugs; standard decorator duplex style with flush mount installation.

  • Wiring Method & Connection: Back wiring with screw terminals supports secure electrical connections (2 pole, 3 wire).

  • Operating Temperature Range: Rated for operation between 32°F and 140°F (0°C to 60°C) in dry indoor locations

  • Standards Compliance: CSA Certified C22.2 No.42, UL Listed under standards UL498 and File E2186; Hospital Grade Fed. Spec compliant.
