Tapping Tee, Blue, 150AC/DC, Taper
Mfr # HBL15TBL
Zoro # G7238813
Key Features
Specifications
Product Information
Dimensions
Description

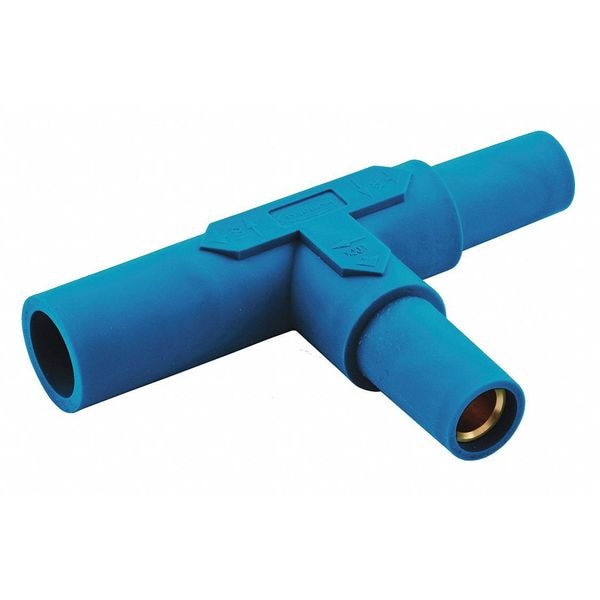

The HUBBELL Tapping Tee is a single pole device intended for use in temporary electrical power distribution applications. It features a plug-in connectivity style and is compatible with Series 15 devices, supporting up to 150 amps at 600V AC or 250V DC. The unit has a female-female-male configuration and utilizes brass contacts within an insulated thermoplastic elastomer housing, making it suitable for indoor dry locations; suitability in other environments may require additional protection as specified by applicable codes or standards.
Key Features of the HUBBELL Tapping Tee:
- Amperage/Voltage Rating: Rated for 150 A, 600V AC / 250V DC applications
- Configuration: Female-Female-Male (Tee style), single conductor, single pole
- Material: Brass contact material; thermoplastic elastomer insulated body
- Mounting: Cord mounted; tapping tee configuration supports parallel connection setups
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Temperature Range: Operates from -40°C to +75°C (continuous)
- Standards Compliance: UL and cUL listed; conforms to NEC, ANSI/NFPA 70 standards; fits UL1691 specification
