  11. Wall Switch, 3-Way, 120/277V, 15A, Wht, Toggl

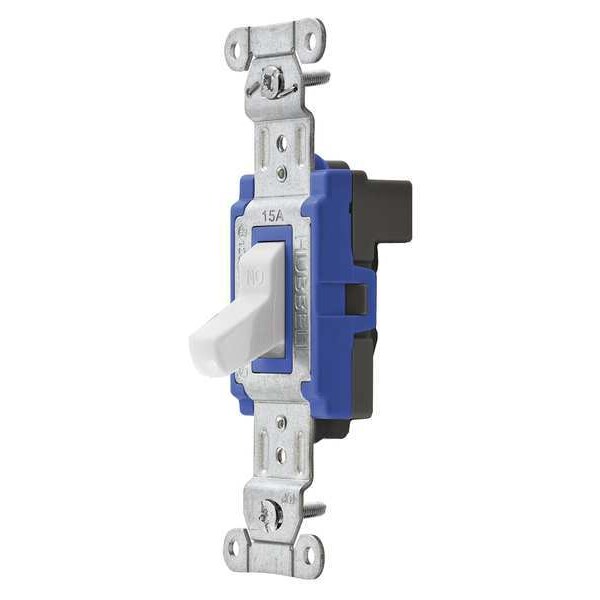

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 15A, Wht, Toggl SNAP1203W - main

Wall Switch, 3-Way, 120/277V, 15A, Wht, Toggl

  • Mfr # SNAP1203W

  • Zoro # G4603164

product price: $11.15
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1203W
Zoro #
G4603164
UPC #
783585186573
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Length
4.18 in
Height
1.74 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Rated HP
1/2 to 2
Antimicrobial
No
Voltage Rating
120/277V AC
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Resistance Properties
Impact Resistant
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Wire Connection Type
Modular Wiring
Current Rating
15 A
Housing Material
Thermoplastic
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees F
Number of Switches
1
Horsepower Rating
2 hp
Type
Toggle
Style
Three Way
Toggle Material
Thermoplastic
Terminals
Brass
Toggle Color
White
Terminal Accommodations
Uses SNAPConnect Connector
Max. Continuous Current
15A
Contacts
Silver Alloy
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Blue
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Base Material
Thermoplastic, Black
Flammability
UL 94V-2
Amperage Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating Description
120-277 VAC
Number Of Poles
Single Pole
Current / Amperage Rating
15 A
Material
Thermoplastic
Item Type
Three Way Toggle Switch
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Action
SPDT
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Series
General Purpose

Description

Wall Switch, Color White, Current Rating 15 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
