  11. Wall Swtch, 2-Pol, 20A, SS, Barrl Key Lockng

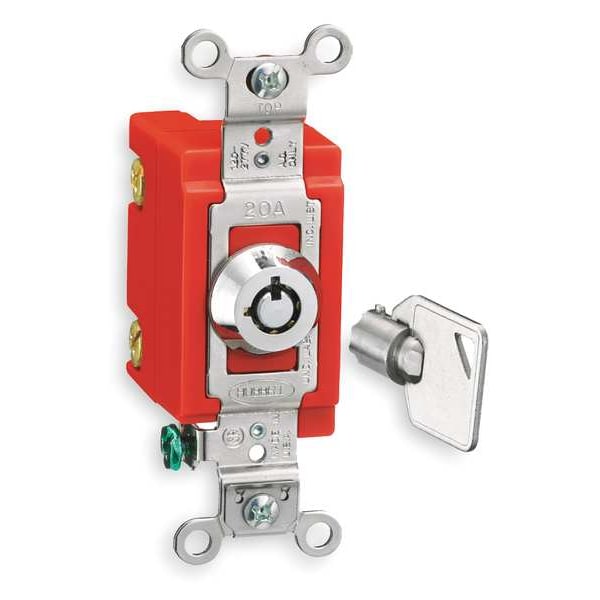

Hubbell Wiring Device-Kellems Wall Swtch, 2-Pol, 20A, SS, Barrl Key Lockng HBL1222RKL - main

Wall Swtch, 2-Pol, 20A, SS, Barrl Key Lockng

  • Mfr # HBL1222RKL

  • Zoro # G1860302

product price: $139.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Double Pole
Switch Style
Locking
Amps AC
20 A
Color
Silver
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1222RKL
Zoro #
G1860302
UPC #
783585431734
Country of Origin
United States

Dimensions

Overall Height
2 in
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Width
1.25 in
Length
4.06 in
Height
2.02 in
Dimensions
4.06 in x 1.25 in x 2.02 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Double Pole
Switch Style
Locking
Amps AC
20 A
Color
Silver
Voltage AC
120 to 277
Locking
Yes
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Description/Special Features
Tamper Resistant
Standards
UL Listed
Rated HP
1-1/2
Voltage
120/277V AC
Horsepower Rating
1 1/2 hp
Market
Industrial
Wire Connection Type
Screw Terminals
Resistance Properties
Impact Resistant
Number of Switches
1
Locking Style
Barrel Key
Voltage Rating
120/277V AC
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Features
Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring
Maximum Operating Temperature
75 Degrees C
Style
Double Pole
Type
Locking
Key Guide Color
Chrome
Wiring Style
Back and Side Wired
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Listing and Certifications
UL Fed Spec Listed and CSA Certified
Flammability
UL 94V-2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type
Barrel-key
Amperage
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Barrel Key Switch Item
Double Pole Switch
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
20A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Voltage Rating Description
120-277 VAC
Connectivity
Back and Side Wired
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Application
Back and Side Wired
Number Of Poles
Double Pole
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Wall Switch, Color Silver, Current Rating 20 A, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 1/2 hp, Locking Style Barrel Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Locking, Wire Connection Type Screw Terminals
