  11. Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount

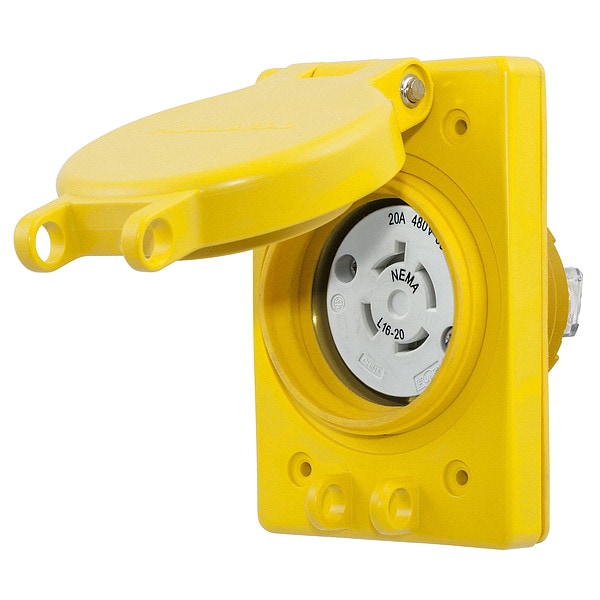

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount HBL67W76 - main

Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL67W76

  • Zoro # G0069870

product price: $147.15
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL67W76
Zoro #
G0069870
UPC #
783585433196
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Wire Size
#18 AWG to #8 AWG
Width
3.10 in
Length
4.56 in
Height
2.92 in
Dimensions
4.56 in x 3.10 in x 2.92 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
3R, 3RX, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Special Features
Corrosion resistant
Grade
Industrial
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Nylon
Maximum Operating Temperature
140 Degrees F
Insulation Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees F
Flange Shape
Rectangular
Market
Industrial
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Polarized
Yes
AFCI
No
Number of Gangs
1
Dielectric Strength
3500V AC
Body Material
PBT
Retainer Material
Clear Polycarbonate
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
NEMA Rating
3R, 3RX, 4, 4X, 6, 6P
Amps
20

Description

Watertight Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Rectangular, Flange Type Flanged, Housing Color Yellow, Housing Material Thermoplastic Elastomer, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, 6, 6P, NEMA Receptacle Configuration L16-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No
