  11. Watertight Locking Plug, L16-30P, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

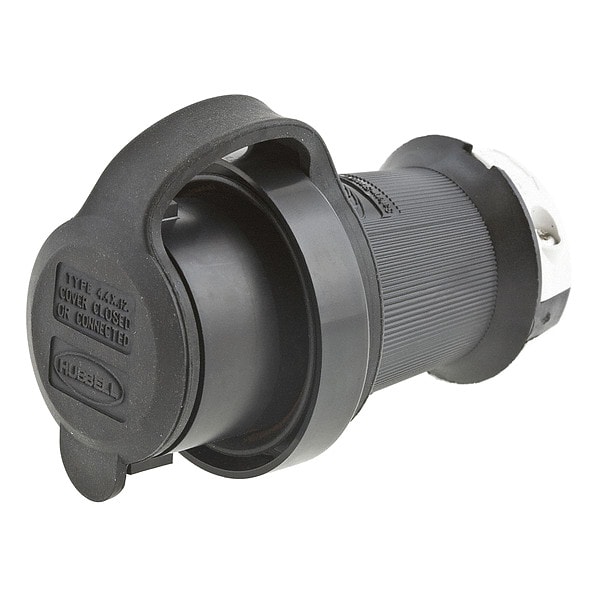

Hubbell Wiring Device-Kellems Watertight Locking Plug, L16-30P, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2731SW - main

Watertight Locking Plug, L16-30P, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2731SW

  • Zoro # G0884536

product price: $144.45
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
L16-30P
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2731SW
Zoro #
G0884536
UPC #
783585231921
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Body Length
2.94 in
Minimum Wire Size
16 AWG
Face Diameter
2.77 in
Maximum Wire Size
8 AWG
Length
2.94 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L16-30P
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP66
Standards
CSA Certified Type 4, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant, Watertight
Grade
Industrial
Special Features
Moisture, Dust and Weather Resistant
Material
Impact Modified PBT
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
Blade Material
Brass
Housing Material
Polybutylene Terephthalate
Polarized
Yes
Weight
0.7 lb
Dielectric Strength
2000V
Retainer Material
Clear Polycarbonate
Contact Material
Brass
Screw Material
Stainless Steel
Flammability
UL 94 V0
Amps
30
Antimicrobial
No

Description

The HUBBELL 30A Watertight Twist-Lock Plug (L16-30P) is a shrouded, industrial-grade locking plug intended for use in industrial and commercial settings. Rated for 30 amps and 480V AC, this three-phase, four-wire device features a rated IP66 per IEC standard to protect against moisture, dust, and weather during use. The plug features brass blades and contacts housed in impact-modified polybutylene terephthalate.


Key Features of the HUBBELL 30A Watertight Locking Plug:

  • NEMA Configuration: L16-30P; three poles, four wires

  • Cord Size Compatibility: Accepts cables from 0.35 in to 1.15 in diameter

  • Wire Size Range: Supports wire sizes from 16 AWG to 8 AWG via screw terminals

  • Operating Temperature Range: -40°C to 75°C

  • Housing Material: Impact modified PBT with clear polycarbonate retainer and stainless steel screws

  • Resistance Properties: Chemical resistance, impact resistance, IP66 rating

  • Flammability Rating: UL94 V-0 rated materials used throughout construction

  • Standards Compliance: CSA Certified Type 4; UL Listed
