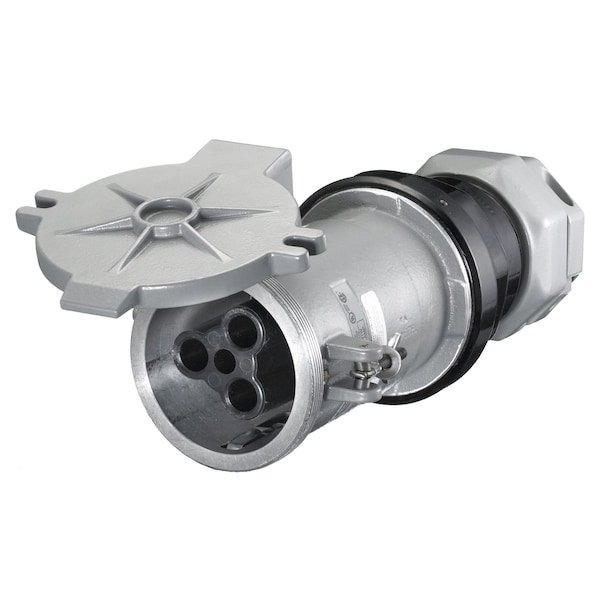

Watertight Pin & Sleeve Connector, 200 A, 600V AC/250V DC, 3 Pole, Style 1 Grounding, NEMA 3, 4, 4X

Mfr # HBL4200CS1W
Zoro # G800701210

1,629.99

Free Shipping & Returns

Key Features

Voltage Rating

600V AC/250V DC

Number of Poles

Number of Wires

NEMA Enclosure Rating

3, 4, 4X

Wire Connection Type

Screw Terminals

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL4200CS1W
Zoro #: G800701210
UPC #: 783585011462
Country of Origin: United States

Dimensions

Display Size: Standard
For Maximum Cable Diameter: 2.50 in
For Minimum Cable Diameter: 1 in

Details

Item: Watertight Pin & Sleeve Connector
Current Rating: 200 A
Voltage Rating: 600V AC/250V DC
Number of Poles: 3
Number of Wires: 4
NEMA Enclosure Rating: 3, 4, 4X
Wire Connection Type: Screw Terminals
Connection Orientation: Straight
Grounding Style: Style 1
Housing Color: Silver
Cap Type: Spring-Loaded Cap
Standards: CSA C22.2, UL 1682
Resistance Properties: Impact Resistant, Moisture Resistant, Watertight
Material: Composite
Application: Metallic with Nylon Shroud
Material - Mounting Hardware: Cord Mounted
OEM Brand Name: Hubbell Wiring Device-Kellems
Insulation: Insulated Body
Environmental Conditions: Watertight
Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Number Of Conductors: 4-Wire Grounding
Style: Standard Service,Style 1 Grounding
Series: UL 1686 Class 1 Insulgrip®
Conductor Range: #1 AWG to #250 MCM
Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)

Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Connector Body, 200A 600V AC,3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black,Watertight
