Shop HUBBELL WIRING DEVICE-KELLEMS

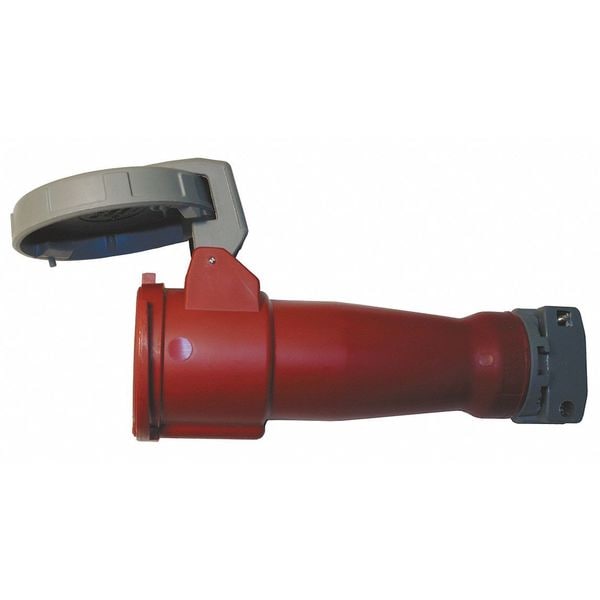

Watertight Pin & Sleeve Connector, 60 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

  • Mfr # HBL460C7W
  • Zoro # G3485474
product price:
$
574.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
480V AC
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL460C7W
Zoro #
G3485474
UPC #
783585404806
Country of Origin
United States

Dimensions

Outside Diameter
4.39 in
Overall Length
10.75 in
Minimum Wire Size
8 AWG
For Maximum Cable Diameter
1.45 in
Maximum Wire Size
2 AWG
For Minimum Cable Diameter
0.50 in
Face Diameter
4.15 in
Wire Rope Length
10.75 in
Length
10.75 in
Fits Chest Size
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
HP
10 hp
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Body Material - Pin and Sleeve
Zytel 801 Nylon
Switch Rated
No
Minimum Operating Temperature
-40 Degrees F
Power Indicating Light
No
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Housing Material
PBT
Horsepower Rating
20 hp
Housing Material Grade
Zytel 801
Reverse Service
No
Shrouded
Yes
Compatible with Series
HBL Heavy Duty
Series
HBL Heavy Duty
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for industrial applications, rated for 60A and 480V AC in three-phase systems. It features a rugged, non-metallic housing constructed from Zytel 801 nylon with a PBT body, with impact and moisture resistant properties. The connector includes color-coded housings for identification and a self-closing gasketed cover to help protect internal components from harsh conditions.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 60 amps at 480V AC, suitable for heavy-duty power connections.

  • Construction: Body made from Zytel 801 nylon; housing material grade is also Zytel 801; face diameter is 4.15 in; overall length is 10.75 in.

  • Cable Compatibility: Accepts wire sizes from 8 AWG to 2 AWG; supports cable diameters between 0.5 in and 1.45 in.

  • Ingress Protection: IP68/IP69K rating as per manufacturer specifications

  • NEMA Enclosure Rating: NEMA Type 4X enclosure rating as per manufacturer specifications

  • Temperature Range: Operates between -40°C to +75°C maximum operating temperature.

  • Connection Type: Screw terminals with straight connection orientation; shrouded design present

  • Pole/Wire Configuration: Three poles, four wires (grounded), phase configuration is three-phase per IEC standards grounding style.

  • Cap Design: Spring-loaded cap included

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC60309-1/IEC60309-2; UL E146033 listed product
