Shop HUBBELL WIRING DEVICE-KELLEMS

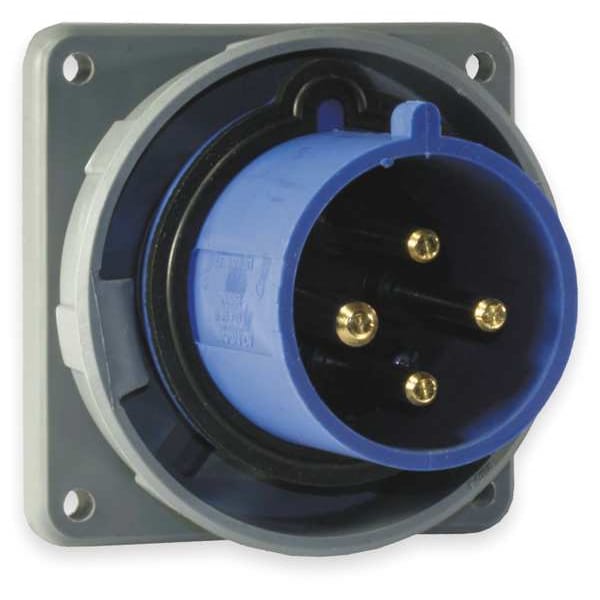

Watertight Pin & Sleeve Inlet, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue

  • Mfr # HBL430B9W

  • Zoro # G3115131

product price:
$
300.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL430B9W
Zoro #
G3115131
UPC #
783585404486
Country of Origin
United States
Item
Watertight Pin & Sleeve Inlet
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Resistance Properties
Moisture Resistant, Watertight
HP
3 hp
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Features
Thermoset Polyester Contact Carrier
Body Material - Pin and Sleeve
Zytel 101 Nylon
Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Shrouded
Yes
Flange Type
Flanged
Housing Material Grade
Zytel 101
Market
Industrial
Compatible with Series
HBL Heavy Duty
Switch Rated
Yes
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
7 1/2 hp
Housing Material Type
Non-Metallic
Insulation Material
Thermoplastic
Housing Material
Polybutylene Terephthalate
Weight
1.35 lb
Application
High Ampacity Watertight Connections
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
HBL Heavy Duty
Environmental Conditions
Watertight
Screw Material
300 Stainless Steel
Retainer Material
High-Impact Thermoset
Gasket Material
Neoprene
Temp. Rise
30°C
Wattage
7500
Operating Temp.
-40 to 75°C
Insulation
Insulated Body
Product Type
Watertight IEC Device
Service
Standard
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Dielectric Strength
3000V AC
Flange Material
Zytel 101 Nylon
Flammability
UL 94 HB or Better
Style
Standard Service
Connection Type
Screw Terminals
Grounding
Grounded
Reverse Service
No
UL 94 Flammability Rating
V-0
Number of Pins
4
Number of Gangs
1
Connection Orientation
Straight

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 30A and 250V AC, suitable for use in industrial settings. Rated for 30A and 250V AC, this three-phase device features a non-metallic housing constructed from Zytel 101 nylon and meets IEC 60309 standards. The unit includes pressure terminal screws for wire connections and supports wire sizes from #12 AWG to #8 AWG. It is compatible with the HBL Heavy Duty series and provides moisture resistance IP67 rated enclosure provides moisture resistance as specified by the standard.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: 30 A, 250V AC, three-phase

  • IP67 rated enclosure; see specifications for details on moisture ingress protection

  • Body Material: Zytel 101 nylon with insulated thermoplastic body

  • Contact Carrier: Thermoset polyester (see operating temperature range)

  • Cord Size Compatibility: Accepts #12 to #8 AWG wires via screw terminals

  • Flanged Design: Facilitates panel mounting (flange diameter: 2.72 in)

  • Operating Temperature Range: -40°C to +75°C continuous use

  • Grounding Style: IEC grounding; shrouded design per IEC grounding style enhances connection integrity

  • Screw Material: Corrosion-resistant 300 stainless steel hardware
