  6. Watertight Pin & Sleeve Receptacle, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red

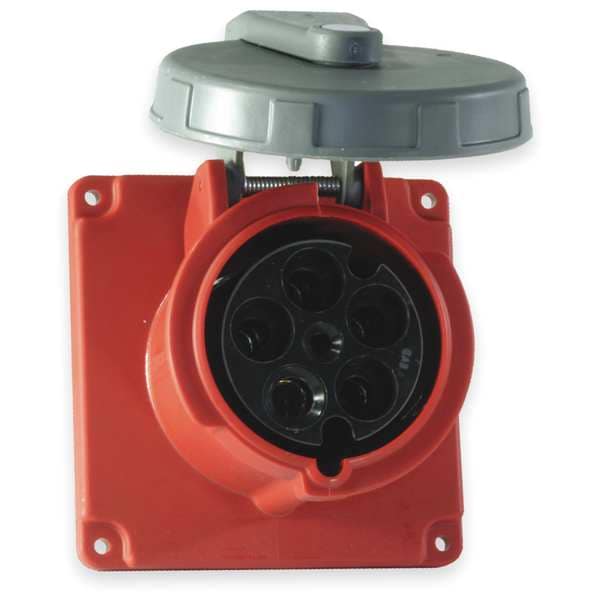

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red HBL5100R7W - main

Watertight Pin & Sleeve Receptacle, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red

  • Mfr # HBL5100R7W

  • Zoro # G3373562

product price:  $623.70
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5100R7W
Zoro #
G3373562
UPC #
783585405117
Country of Origin
United States

Dimensions

Maximum Wire Size
1/0 AWG
Minimum Wire Size
3 AWG
Cord Size
3 to 1/0 AWG
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Color Coded
Body Material - Pin and Sleeve
Zytel 101 Nylon
Grounding Style
IEC
HP
30 hp
Switch Rated
No
Body Material
Zytel 101 Nylon
Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees C
Reverse Service
No
Power Indicating Light
No
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
Housing Material Grade
Zytel 101
Housing Material
Thermoplastic
Number of Gangs
1
Connection Orientation
Straight
Flange Type
Flanged
Market
Industrial
Horsepower Rating
40 hp
Dielectric Strength
3000V AC
Service
Standard
UV Resistance
All Materials are UV Stabilized
Product Type
Watertight IEC Device
Temp. Rise
30°C
Weight
4.05 lb
Flammability
UL 94 5VA, UL 94 V0
Screw Material
300 Stainless Steel
Gasket Material
Neoprene
Flange Material
Zytel 101 Nylon
Retainer Material
High-Impact Thermoset
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Style
Standard Service
Material - Mounting Hardware
Screw Mounting
Wattage
48000
Series
HBL Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Listed To Standard UL1682
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device rated for 100A and 277/480V AC, suitable for use in industrial environments. Rated for 100A and 277/480V AC, this receptacle features a rugged thermoplastic housing made from Zytel 101 nylon, constructing with materials specified as Zytel 101 nylon. The unit includes a self-closing gasketed cover and color-coded red housing for identification. It supports straight connection orientation with screw terminal pressure connectivity suitable for wire sizes ranging from #3 AWG to 1/0 AWG.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current Rating: Rated for up to 100 amps at 277/480V AC three-phase power

  • Watertight Construction: IP67 ingress protection; includes neoprene gasket material

  • Material: Housing, body, flange made from Zytel 101 nylon; retainer is high-impact thermoset

  • Cord Accommodation: Accepts cord sizes from #3 AWG to #1/0 AWG

  • Connection Type: Pressure terminal screws with grounded IEC configuration

  • Operating Temperature Range: -40°C to +75°C continuous operation

  • Flammability Ratings: UL 94 HB or better; meets UL1682 standards

  • Resistance Properties: Constructed from Zytel 101 nylon and high-impact thermoset materials

  • Circuit Configuration: Four poles/five wires (3Y phase)

  • NEMA Enclosure Rating: Not rated; conforms to relevant CSA and UL standards including CSA C22.2 No.182.1 & UL1682
