  5. Clamp Meter, LCD, 600 A, 1.5 in (38 mm) Jaw Capacity, CAT III 600V Safety Rating

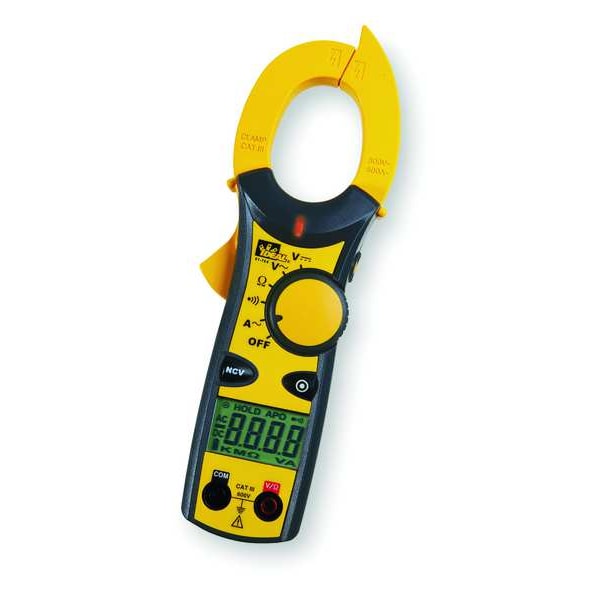

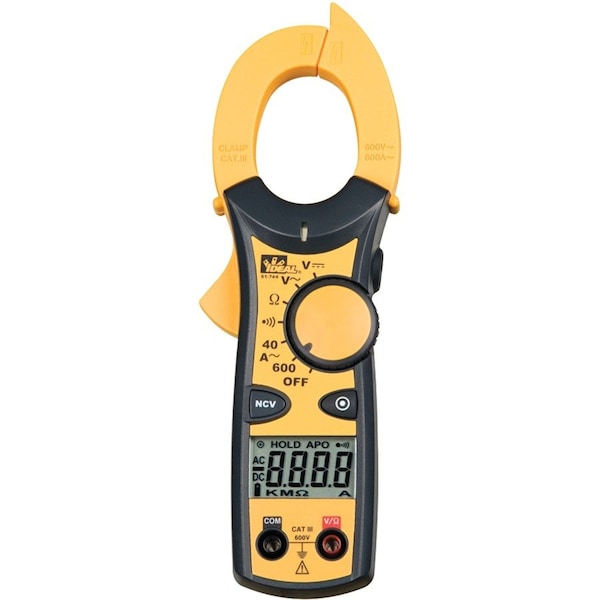

Ideal Clamp Meter, LCD, 600 A, 1.5 in (38 mm) Jaw Capacity, CAT III 600V Safety Rating 61-744 - main

Clamp Meter, LCD, 600 A, 1.5 in (38 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # 61-744

  • Zoro # G3016501

product price:  $118.08
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61-744
Zoro #
G3016501
UPC #
783250682386
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
AAA

Details

Item
Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40
Jaw Capacity
1.5 in (38 mm)
Safety Rating
CAT III 600V
Display
LCD
Jaw Opening
1.3 in
Max. AC Volts
600 V
Calibration Frequency
50 to 60 Hz
Data Hold
Yes
Includes
Carrying Case, Test Leads
Counts
4,000
Special Features
Low Battery Indicator, Tapered Jaws With Hook Tip
Battery Type
AAA
AC Current Accuracy
+/-2.0% + 5 Digits
Audible Continuity
Yes
Auto Power Off
Yes
Operating Temp.
32 Degrees to 122 Degrees F
AC Response
Average
Auto Ranging
Yes
Standards
UL
Peak Hold
No
Memory
Data hold
Diode Test
No
Non-Contact Voltage Detector
Yes
Basic DC Voltage Accuracy
+/-0.5%
Display Type
LCD
Minimum DC Voltage Measurement
0 V
Maximum AC Voltage Measurement
600 V
Minimum AC Current Measurement
0 A
Parameters Measured
AC Current, AC Voltage, DC Voltage, Resistance
Maximum DC Voltage Measurement
600 V
Battery Voltage
1.5V DC
Battery Access
Yes
Resistance Measurement Accuracy
+/-1.00%
Basic AC Current Accuracy
+/-1.7%
Jaw Style
Clamp-Jaw
AC Response Calculation
Average
Minimum AC Voltage Measurement
70 V
Maximum AC Current Measurement
600 A
Basic AC Voltage Accuracy
+/-1.2 %
Maximum Resistance Measurement
40 megaohm

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation Average, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, IP Rating IP40, Parameters Measured AC Current, AC Voltage, DC Voltage, Resistance, Intrinsically Safe No, Data Logging No, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 1.3 in, Jaw Style Clamp
