  11. Inductive, Rectangular Proximity Sensor, Polyamide, M12, 3 Wires, Shielded

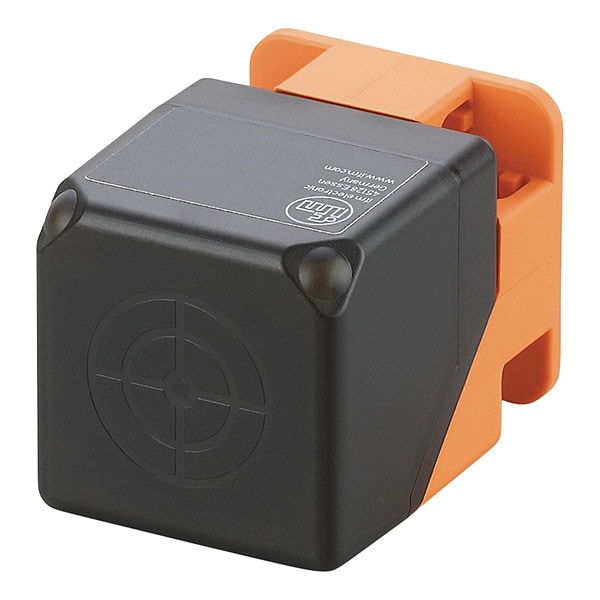

Ifm Inductive, Rectangular Proximity Sensor, Polyamide, M12, 3 Wires, Shielded IM5115 - main

Inductive, Rectangular Proximity Sensor, Polyamide, M12, 3 Wires, Shielded

  • Mfr # IM5115

  • Zoro # G6438686

product price: $75.59
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
66 mm
Width
40 mm
Depth
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IM5115
Zoro #
G6438686
UPC #
-
Country of Origin
Romania

Dimensions

Length
66 mm
Width
40 mm
Depth
40 mm
Dimensions [mm]
40 x 40 x 54
Overall Depth
40 mm
Overall Width
40 mm
Overall Height
54 mm

Details

Item
Inductive Rectangular Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
M12 Connector
Proximity Sensor Operating Frequency
100 Hz
Description/Special Features
Short-Circuit and Overload Protection, Yellow LED Output Indication
Max. Current Load
200mA
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-6, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL Listed
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
M12
Sensing range [mm]
20
Special feature
Gold-plated contacts
Protection
IP 67
Type of short-circuit protection
pulsed
Connection
Connector: 1 x M12; coding: A; Locking: locking, rotatable; Contacts: gold-plated
Max. voltage drop switching output DC [V]
2.5
EMC
EN 61000-4-2 ESD 8 kV CD / 4 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Permanent current rating of switching output DC [mA]
200
Overload protection
yes
MTTF [years]
1590
Current consumption [mA]
< 20
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Class 2 File number UL E174191
Ambient temperature [°C]
-25...70
Operating voltage [V]
10...36 DC
Housing
rectangular
Sensing face
5 positions selectable
Display
switching status 1 x LED, yellow operation 1 x LED, green
Mounting
flush mountable
Protection class
II
Reverse polarity protection
yes
Short-circuit protection
yes
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Switching frequency DC [Hz]
100
Electrical design
PNP
Hysteresis [% of Sr]
1...20
Materials
PA
Operating distance [mm]
0...16.2
Ambient temperature [°C]
-25...70
Sensing Distance - Maximum
20 mm
Output Circuit Contact Form
NO
Sensing Face Shielding
Shielded
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Direct Connector
Output Circuit Type
PNP
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
10-36V DC
AC Voltage Rating
Not Rated
Style
Inductive, Rectangular
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
100 Hz
Body Material
Polyamide
Output Circuit Voltage - Maximum
2.5 V DC
Output Circuit Current - Maximum
200 mA
Output Circuit Number of Wires
3

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection M12 Connector, Output Mode NO, IP Rating IP67, Case Material Polyamide, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
