- MFR #
- ET2745CR
- Zoro #
- G6137181
- UPC #
- 078275148185
- Country of Origin
- Mexico

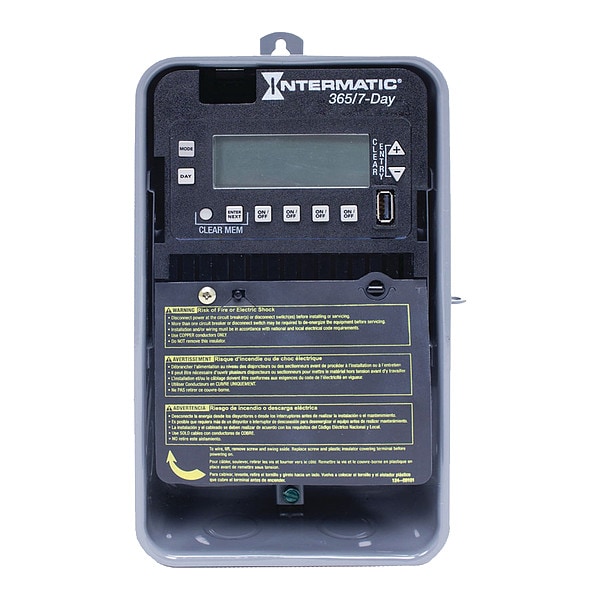

- Item
- Electronic Timer
- Operation Mode
- 366 Days
- Number of Channels
- 4
- Time Minimum Setting
- 2 min
- Indoor/Outdoor Usage
- Outdoor
- Voltage
- 120 to 277V AC
- Body Material
- Metal
- Contact Form
- DPST, SPST
- Amps
- 30 A
- HP @ 120V
- 1 hp
- HP @ 240V
- 2 hp
- Events Available - Electronic Timer
- 96
- Available Actions - Electronic Timer
- On/Off, Pulse
- Event Allocation - Electronic Timer
- 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
- Max. On/Off Cycles
- 96
- Number of Poles
- 6
- Description/Special Features
- Outdoor
- Pulse Duration
- 2 sec
- Enclosure
- Metal
- Color
- Gray
- Mounting
- Surface
- Backup Device
- Capacitor
- Min. Time Setting
- 1 min
- Max. Time Setting
- 7 day
- Standards
- cULus, California Title 20
- NEMA Rating
- 3R
- Operating Temp.
- -40 Degrees to 155 Degrees F
- Number of Pulse Events
- 48
- Backup Time
- 100 hr
- Enclosure Type
- Outdoor type 3R metal
- Hz - Electrical
- 60 Hz
- Features
- 50 Holiday Blocks
- Display
- LED
- Switch Type
- 4xSPST, 2xDPST or Pulse
- Max. Wattage
- 7 W
- Max. Ballast Amps
- 10 A, 120/277 VAC
- Adjustment Type
- Automatic
- Application
- Lighting, Machinery, Pump Controls
- Voltage Type
- Auto Voltage
- Series
- ET2000
- Operating Temperature Min (°F)
- -40
- Motor Load Ratings NO Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC
- Application Compatibilities
- LED
- Magnetic Ballast (NO) Range(s)
- 20 A, 120-277 VAC
- Electronic Ballast Load Ratings NO Ranges
- 10 A, 120/277 VAC
- Wiring Option
- Terminals
- Backup Type
- Supercapacitor
- Tungsten (NO) Range(s)
- 5 A, 120-277 VAC
- Daylight Savings Adjustment
- Automatic
- Minimum ON/OFF Times
- 1 min
- Operation Features
- Holiday
- Backup Protection Time
- 100 Hour
- Number Of Circuits
- 4
- Minimum Pulse Time
- 2 sec
- Maximum ON/OFF Operations
- 96
- On Off Operations
- 96
- Operating Temperature Max (°F)
- 104
- Electronic Series
- ET2000 Series
- Inductive Load Ratings NO Ranges
- 30 A, 120-240 VAC
- Resistive (NO) Range(s)
- 20 A, 28 VDC; 30 A, 120-240 VAC
- Maximum Power Consumption (W)
- 7 W
- Backup Restoration Time
- 30 Minutes
- Maximum ON/OFF Times
- Indefinite
- Maximum Pulse Time
- 2 sec
- UL Certification
- CULUS
- Voltage Selection Type
- Auto Voltage
- Applications
- Indoor Lighting Control
Machinery & Pump Controls
Timing/Scheduling ON/OFF
- Input Voltage Range(s)
- 120-277 VAC, 60 Hz
- Operating Temperature Max (°F)
- 104
- Operating Temperature Min (°F)
- -40
- Time Setting - Maximum
- 7 day
- Mounting Style
- Surface
- Events Available
- 96
- Horsepower @ 120V - Maximum
- 1 hp
- Operating Temperature - Minimum
- -40 Degrees F
- Horsepower @ 240V - Maximum
- 2 hp
- Timer Functions
- On/Off Pulse
- Time Setting - Minimum
- 1 min
- Electrical Installation Type
- Screw Terminal
- Compatible Lighting
- LED
- NEMA Enclosure Rating
- 3R
- AC Voltage Rating
- 120-277V AC
- Pulse Duration - Maximum
- 2 sec
- Astronomic Functionality
- No
- Current Rating - Maximum
- 30 A
- Operating Temperature - Maximum
- 104 Degrees F
- Body Color
- Grey
- Time Maximum Setting
- 8 day
