  11. Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

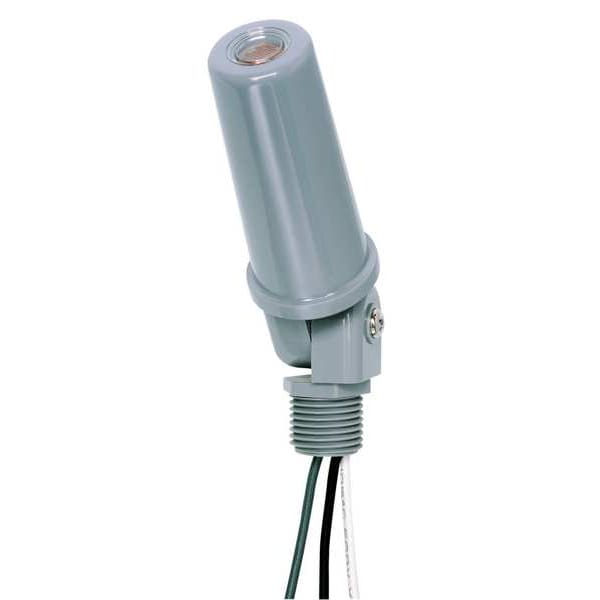

Intermatic Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min K4251 - main

Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4251

  • Zoro # G3993403

product price: $25.79
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Length
5 1/2 in
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4251
Zoro #
G3993403
UPC #
078275128828
Country of Origin
China

Dimensions

Length
5 1/2 in
Manufacturers Warranty Length
1 yr
Depth
1 1/2 in
Width
1 1/2 in
Overall Height
4 in
Wire Lead Length
6 in; 152 mm
Wire Size Max
#18 AWG
Stem Thread Size
1/2"-14
Stem Diameter
1/2 in

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Standards
CSA, California Title 20
Enclosure Type
Raintight
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Contact Form
SPST
Includes
Lock Nut, Washer Gasket
Description/Special Features
Photo Eye Located On Top And Are Designed For Spot/flood Type Fixtures
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting
Expected Lifetime Operations
3650
Expected Lifetime Years
5
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Photocontrol Style
Stem and Swivel Mount
Magnetic Ballast Load Ratings
8.3 A, 1000 VA
Wiring Option
Wire leads
Photocontrol Sensor Location
Top
Photocontrol Switch Type
Mechanical Bimetal
Fail Mode
ON
Activation Off
3 to 15 fc
Activation On
1 to 5 fc
Market
Commercial; Residential; Industrial
Tungsten Load Ratings
15 A, 1800 W
Photocontrol Photocell Type
Cadmium Sulfide
CSA Certification
CSA
Input Voltage Ranges
120 VAC, 50/60 Hz
Photocontrol Type
Thermal
Applications
Outdoor Lighting Control
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Top-Mounted Sensor
Operating Temperature - Minimum
-40 Degrees F
Stem Thread Type
NPSM
Incandescent Current - Maximum
15 A
AC Operating Voltage
120V AC
Wattage - Maximum
1,800 W
Mounting Style
Stem and Swivel
Indoor/Outdoor Usage
Outdoor
Time Delay - Minimum
30 sec
On Illumination - Minimum
1 fc
Ballast Current - Maximum
8.3 A
Compatible Lighting
Fluorescent, HID, Incandescent
On Illumination - Maximum
5 fc
Operating Temperature - Maximum
140 Degrees F
Off Illumination - Maximum
15 fc
Resistance Properties
UV Resistant
Off Illumination - Minimum
3 fc
Body Color
Gray
Time Delay - Maximum
90 sec

Description

Photocontrol, Mounting Stem and Swivel, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 5 1/2 in, Width 1 1/2 in, Depth 1 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, California Title 20, Includes Lock Nut, Washer Gasket
