  11. HID, Incandescent Photocontrol, 4,150 W, Maroon/White, 90 sec Max, 30 sec Min

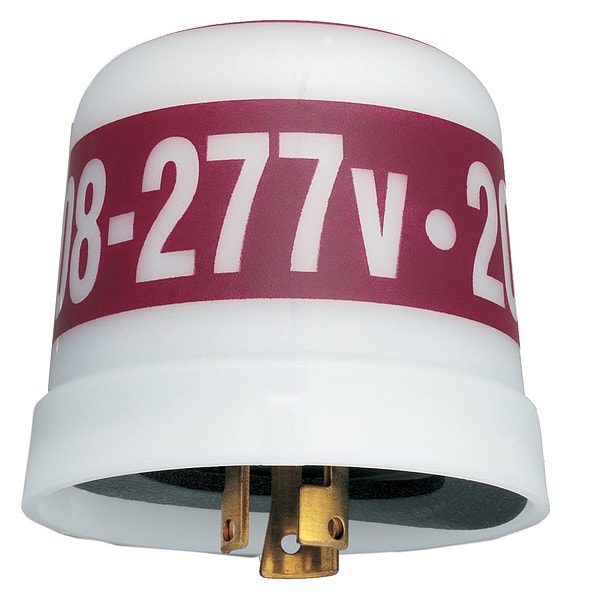

Intermatic HID, Incandescent Photocontrol, 4,150 W, Maroon/White, 90 sec Max, 30 sec Min LC4523LA - main

HID, Incandescent Photocontrol, 4,150 W, Maroon/White, 90 sec Max, 30 sec Min

  • Mfr # LC4523LA

  • Zoro # G3924426

product price: $28.69
/ea

Key Features

Foot Candles On
0.5
Foot Candles Off
15
Temp. Range
-20 Degrees to 104 Degrees F
Width
3 in
Manufacturers Warranty Length
2 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC4523LA
Zoro #
G3924426
UPC #
078275128910
Country of Origin
Mexico

Dimensions

Width
3 in
Manufacturers Warranty Length
2 yr
Depth
3 in
Length
2 3/4 in
Overall Height
2.75 in
Product Diameter
3 in; 76.2 mm

Details

Item
Photocontrol
Foot Candles On
0.5
Foot Candles Off
15
Temp. Range
-20 Degrees to 104 Degrees F
Setting
Dusk to Dawn
Description/Special Features
2400 Volt Open Type Spark Gap Arrester, UV Protection Keeps Moisture Out And Esnures Long Life
Contact Form
SPST
Housing Material
Polypropylene
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Standards
ANSI C136.10, cCSAus, California Title 20, UL Listed
Enclosure Type
Raintight
CSA Certification
cCSAus
Photocontrol Style
Locking type
Activation Off
15 fc
Market
Commercial; Utility; Industrial
Photocontrol Sensor Location
Side
Photocontrol Switch Type
Mechanical Bimetal
Expected Lifetime Years
5
Tungsten Load Ratings
15 A, 3100-4150 W
Activation On
5 fc
UL Certification
UL
Photocontrol Type
Thermal
Magnetic Ballast Load Ratings
8.3 A, 1700-2300 VA
Applications
Outdoor Lighting Control
Input Voltage Ranges
208-277 VAC, 50/60 Hz
Expected Lifetime Operations
3650
Photocontrol Photocell Type
Cadmium Sulfide
Surge Protection Technology
Spark Gap Surge Arrestor
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Fail Mode
ON
Solutions
Lighting Control; Panel Integrators
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Spark Gap Surge Arrestor
Incandescent Current - Maximum
15 A
Off Illumination - Maximum
15 fc
Wattage - Maximum
4,150 W
Mounting Style
Locking
Time Delay - Maximum
90 sec
Compatible Lighting
HID, Incandescent
Operating Temperature - Maximum
158 Degrees F
Body Color
Maroon/White
Ballast Current - Maximum
8.3 A
On Illumination - Maximum
5 fc
Operating Temperature - Minimum
-40 Degrees F
Time Delay - Minimum
30 sec
Indoor/Outdoor Usage
Outdoor
AC Operating Voltage
208-277V AC

Description

Photocontrol, Mounting Turn-Lock, Voltage 208 to 277V AC, Max. Wattage 4,155, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Red, Temp. Range -20 Degrees to 104 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cCSAus, California Title 20, UL Listed, Includes Not Applicable
