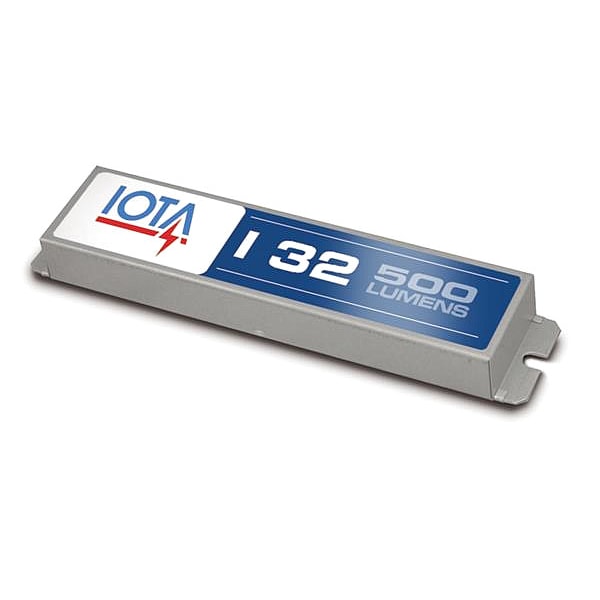

Fluorescent Emergency Ballast, 28W, 60Hz
- Mfr # I32 M25
- Zoro # G611249161
product price:Â
$
108.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Galvanized Steel
Width
2 in
Height
1 in
Standards
cULus Listed, NFPA 101, RoHS Compliant
Brand and Series
Acuity Brand I32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- I32 M25
- Zoro #
- G611249161
- UPC #
- 040232474392
- Country of Origin
- China
- Housing Material
- Galvanized Steel
- Standards
- cULus Listed, NFPA 101, RoHS Compliant
- Brand and Series
- Acuity Brand I32
- Ballast Bulb Type
- T10, T12, T5, T8, T9
- Temperature Range
- 0 Degrees to 50 Degrees
- Emergency Illumination Time
- 90 min
- Initial Lumens
- 500 lm
- Profile
- Low Profile
- For Use With
- Linear Fluorescent Luminaires
- Input Voltage
- 120/277V AC
- Frequency
- 60 Hz
- Includes
- Charge Indicator Accessory Kit, Test Switch
- Max. Bulb Watts
- 28 W
- Number of Bulbs Supported
- 1
- Recharge Time
- 24 hr
- Item
- Fluorescent Emergency Ballast
- Battery Type
- Nickel Cadmium
- Bulb Watts
- 28 W
- CA Title 20 Compliant
- No
- Initial Light Output - Maximum
- 500 lm
- Operating Temperature - Minimum
- 32 Degrees F
- Initial Light Output - Minimum
- 450 lm
- Compatible Product Type
- 122 Degrees F
Description
Acuity Brand I32, Fluorescent Emergency Ballast, Input Voltage 120/277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 28 W, T10, T12, T5, T8, T9 Ballast Bulb Type, Initial Lumens 500 lm, Galvanized Steel Housing Material, 9 1/2 in Length, 2 in Width, 1 in Height, Low Profile, 90 min Emergency Illumination Time, 24 hr Recharge Time
