Shop JOHNSON CONTROLS

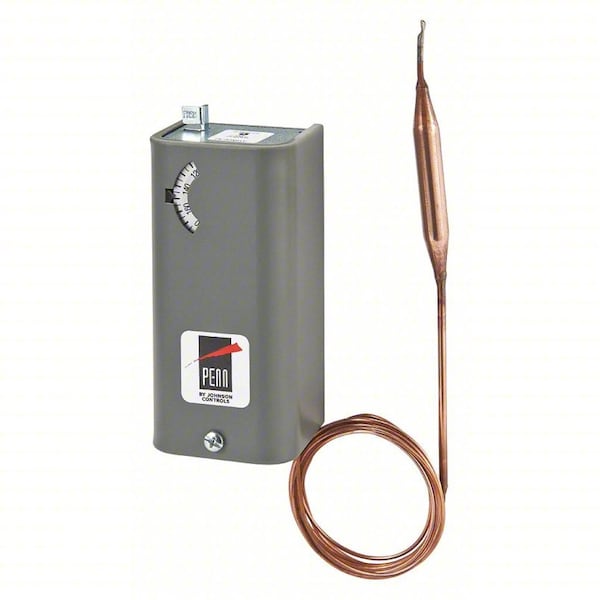

Line Voltage Mechanical Thermostat, Heat or Cool, 25 to 225F, Screwdriver, 24 to 277V AC, 1C, 1H

  • Mfr # A19AAF-12C

  • Zoro # G5063021

product price:  $179.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A19AAF-12C
Zoro #
G5063021
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
120 in
Sensing Bulb Dia.
3/8 in
Overall Width
2-1/8 in
Overall Height
4-3/8 in
Bulb Length
3 in
Overall Depth
1-7/8 in
Capillary Length/Bulb Diameter
10 ft Capillary, 3 in x 3/8 in Bulb
Bulb Diameter
3/8 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
25 to 225 Degrees F
Control Type
Screwdriver
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Resistive Amps @ 208VAC
10 A
Contact Rating Resistive @ 120V
10 A
Contact Rating Resistive @ 277V
10 A
Enclosure Type
Galvanized/Steel
Includes
Remote Sensing Bulb
Inductive Amps @ 208V
3.4 A
Locked Rotor Amps @ 120V
36 A
Standards
CSA LR948/4813 02, UL E6688
Inductive Amps @ 240V
3 A
Inductive Amps @ 120V
6 A
Contact Rating Resistive @ 240V
10 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Locked Rotor Amps @ 240V
18 A
Number of Switches
1
Number of Relay Outputs
1
Number of Relay Inputs
1
For Use With
HVAC/R Applications
Thermostat Type
Indoor Single-Stage Controls
Features
Wide Temperature Ranges Available Constant Differential Throughout the Entire Range, Variety of Sensing Element Styles, Unaffected by Cross-Ambient Conditions
Stages
1H/1C
Maximum Operating Temperature
275 Degrees F
Full Load Amps @ 240V AC
3 A
Full Load Amps @ 120V AC
6 A
Enclosure NEMA Rating
1
Temperature Scale
Fahrenheit/Celsius
Temperature Differential
3.5 Degrees F
Maximum Control Temperature
225 Degrees F
Enclosure Color
Gray
Differential Type
Fixed
Number of Poles
1
Changeover Type
Manual
Contact Rating
120V AC, 240V AC
Temperature Sensitivity
+/-2 Degrees F
Minimum Control Temperature
25 Degrees F
Electrical Connection Type
Hardwired, Screw Terminal
Pilot Duty Rating
125 VA @ 24 to 277V AC
Sensor Location
Remote
Minimum Operating Temperature
-35 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable
Enclosure Material
Steel
Resistive Amps @ 208V AC
10 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 25 Degrees to 225 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 3A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 3.5 Degrees F, Height 4-3/8 In.
