J.W. Speaker

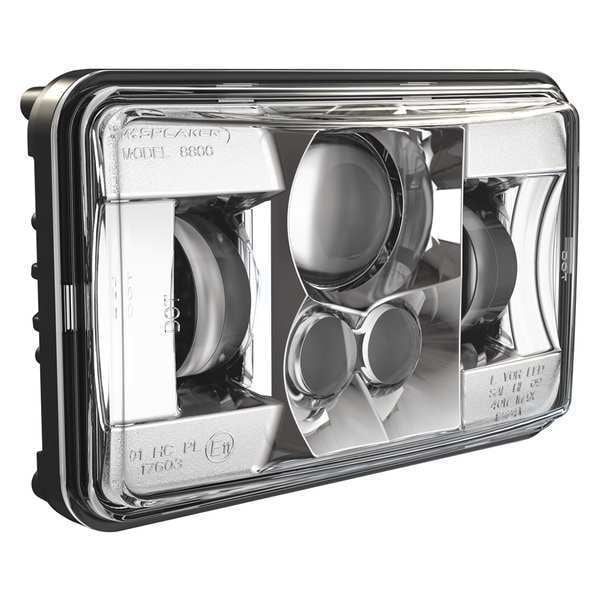

Low Beam Headlight, LED Type

product price: $291.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material polycarbonate
  • Type Led
  • Height - Vehicle Lighting 4 1/4 in
  • Lumens - Vehicle Lighting 2,830 lm
  • Lens Shape - Vehicle Lighting Rectangular
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 4 1/4 in
Length - Vehicle Lighting 6 1/2 in
Width - Vehicle Lighting 3 1/4 in
Overall Depth 3 3/8 in
Overall Height 4 1/4 in
Overall Width 6 5/8 in

Details

Material polycarbonate
Type Led
Lumens - Vehicle Lighting 2,830 lm
Lens Shape - Vehicle Lighting Rectangular
Wiring Connection - Vehicle Lighting Hardwired
Color Gray
Fits Car, Trailer, Truck, Van
Mounting - Vehicle Lighting Permanent
Volt Bulb 10 to 32V
Post No
Current Rating 2.25 A
Lamp Life 40,000 hr
Lighting Technology - Vehicle Lighting LED
Standards DOT Compliant, ECE, NCAP
Lens Color Clear
Used For Cars, Trucks, Vans
Lens Material Polycarbonate
Housing Material Aluminum
Item Headlight
Housing Color Black
Shape Rectangular
Features Drop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Lighting Technology LED
Electrical Connection H4 Connector
Compatible Electrical Connection Manufacturer Model Number 3269601, 3269611, 8000381
Includes Electrical Connection Electrical Connection Included
Maximum Operating Temperature 149 Degrees F
Current 1.00 A @ 24V DC, 2.10 A @ 12V DC
Beam Type Low Beam
Mount Type Low-Profile Panel Mount
Heated Non-Heated
IP Rating IP69K
Vehicle Side Universal
Installation Type Permanent
Mount Style Recessed
Minimum Operating Temperature -40 Degrees F
Minimum Brightness 782 lm
Maximum Brightness 2,830 lm
Series 8800 Evolution 2
Light Type Headlight
Peak Beam Intensity 29,800 cd

Description

Headlight, Light Type Headlight, Lighting Technology LED, Heated Non-Heated, Vehicle Class Not Applicable, Vehicle Side Universal, Beam Type Low Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Mount Type Low-Profile Panel Mount, Electrical Connection H4 Connector, Shape Rectangular, Number of Bulbs Not Applicable, Overall Height 4 1/4 in, Overall Width 6 5/8 in, Overall Depth 3 3/8 in, Housing Material Aluminum, IP Rating IP69K, Series 8800 Evolution 2
