J.W. Speaker

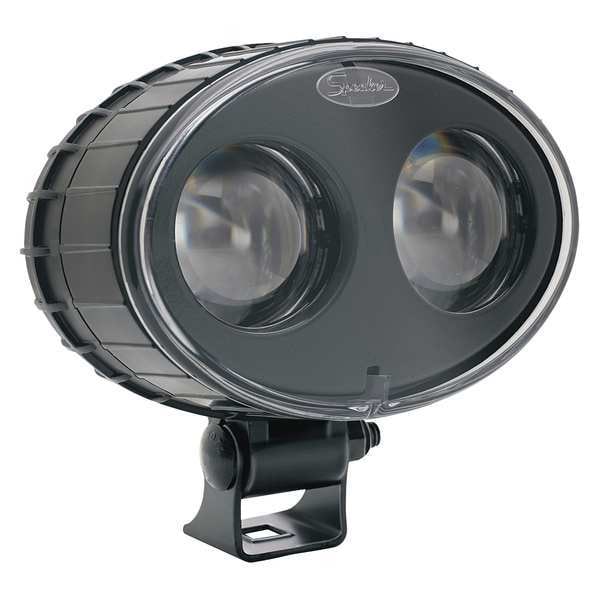

Work Light, LED, Red, 12VAC/DC

original price: $78.79
10% off
new price: $70.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Polycarbonate
  • Lens Material Polycarbonate
  • Width 5-43/64"
  • Height 5-13/32"
  • Standards SAE
See all product information

Product Information

Dimensions

Width 5-43/64"
Height 5-13/32"
Width - Vehicle Lighting 3 in
Height - Vehicle Lighting 3 7/8 in
Depth 2-1/4"
Length - Vehicle Lighting 5 11/16 in
Overall Height 5 3/8 in
Overall Depth 3 7/16 in

Details

Housing Material Polycarbonate
Lens Material Polycarbonate
Standards SAE
Mounting Universal pedestal
Lens Design Spot Beam Pattern
Lighting Technology - Vehicle Lighting LED
Light Output 700 lm
Current Drawn 0.1 A AC
Lamp Type LED
Rating IP67
Color Red
Includes DT04-2P Connector
Power Source 12VAC/DC
Item Safety Boundary Light
Wiring Connection - Vehicle Lighting Pigtail
Mounting - Vehicle Lighting Pedestal
Voltage 12 to 110VDC
Housing Color Black
Lamp Life 40,000 hr.
Features Low Current Draw
Application Material Handling; Industrial
Lens Color - Vehicle Lighting Red
Lens Color Clear
Voltage - Vehicle Lighting 12 to 110VDC
Wide Range - Vehicle Lighting Perimeter Light
LED Color Red
Light Color Red
Maximum Brightness 700 lm
Current 0.04 A @ 110V DC, 0.05 A @ 60V DC, 0.19 A @ 12V DC
IP Rating IP69K
Maximum Operating Temperature 149 Degrees F
Compatible Vehicle Type Universal
Compatible Electrical Connection Manufacturer Model Number DT04-2P
Shape Oval
Installation Location Front
Electrical Connection DT04-2P Connector
Mount Type Pedestal
Lighting Technology LED
Beam Pattern Spot
Minimum Operating Temperature -40 Degrees F

Description

Safety Boundary Light, Housing Color Black, Housing Material Polycarbonate, Features Low Current Draw, Shape Oval, Beam Pattern Spot, Lighting Technology LED, Mount Type Pedestal, Overall Height 5 3/8 in, Maximum Brightness 700 lm, Operating Voltage 12-110V DC, Electrical Connection DT04-2P Connector, IP Rating IP69K, Standards SAE, Number of Bulbs Not Applicable, Compatible Vehicle Type Universal, Light Color Red, Lens Color Clear, Installation Location Front
