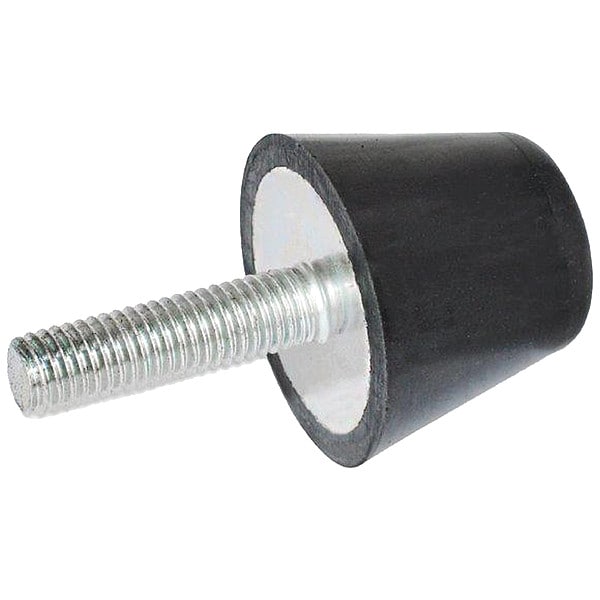

Vibration-Isolating Mount, 0.63 in H
Mfr # 253-19-10X24-9.5-55
Zoro # G108258010
product price:Â $4.19
/ea
Sold in multiples of 3 for $12.57
Key Features
Height
0.63 in
Thread Size
#10-24
Resistant To
Abrasion; Alkaline; Grease; Oil; Petrol; Wear
Mounting
Conveyor
Maximum Operating Temperature
176 Degrees F
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 253-19-10X24-9.5-55
- Zoro #
- G108258010
- UPC #
- -
- Country of Origin
- Hungary
Dimensions
- Height
- 0.63 in
- Thread Size
- #10-24
- Overall Diameter
- 0.75 in
- Stud Length
- 0.37 in
- Overall Height
- 0.63 in
- Taper Diameter
- 0.47 in
Details
- Item
- Vibration-Isolating Mount
- Resistant To
- Abrasion; Alkaline; Grease; Oil; Petrol; Wear
- Mounting
- Conveyor
- Maximum Operating Temperature
- 176 Degrees F
- Vibration Isolator Style
- One Threaded Stud
- Durometer
- 55A
- Shape
- Flat Conical
- Maximum Load Sideways Shear
- 160 lbf
- Maximum Load Downward Compression
- 24.73 lbf
- Stud or Tap Material
- Zinc-Plated Steel
- Isolator Material
- Buna-N
- Load Downward Compression - Maximum
- 24.73 lbf
- FDA Approved
- Not FDA Approved
- Load Sideways Shear - Maximum
- 160 lbf
- Operating Temperature - Maximum
- 176 Degrees F
- Spring Rate
- 160 lbf/in
Description
Vibration-Isolating Mount, Vibration Isolator Style One Threaded Stud, Maximum Load Downward Compression 24.73 lbf, Overall Diameter 0.75 in, Height 0.63 in, Stud Length 0.37 in, Maximum Load Sideways Shear 160 lbf, Thread Size #10-24, Durometer 55A, Isolator Material Buna-N, Maximum Operating Temperature 176 Degrees F, Mounting Conveyor, Resistant To Abrasion; Alkaline; Grease; Oil; Petrol; Wear, Shape Flat Conical, Stud or Tap Material Zinc-Plated Steel, Tap Depth Not Applicable
