Shop J.W. WINCO

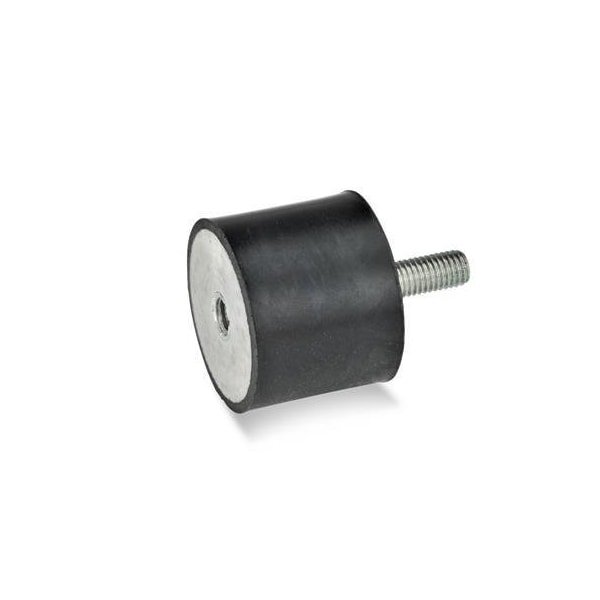

Vibration-Isolating Mount, 75 mm H

  • Mfr # 351-100-75-M16-ES-55

  • Zoro # G308259145

product price:  $50.19
/ea

Key Features

Height
2.95 in
Thread Size
M16
Mounting
Compressor; Motor; Pump
Resistant To
Abrasion; Wear
Maximum Operating Temperature
176 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
351-100-75-M16-ES-55
Zoro #
G308259145
UPC #
664423443341
Country of Origin
Hungary

Dimensions

Height
2.95 in
Thread Size
M16
Stud Length
41 mm
Tap Depth
16 mm
Overall Diameter
100 mm
Overall Height
75 mm

Details

Item
Vibration-Isolating Mount
Mounting
Compressor; Motor; Pump
Resistant To
Abrasion; Wear
Maximum Operating Temperature
176 Degrees F
Maximum Load Downward Compression
2,167 lbf
Stud or Tap Material
Zinc-Plated Steel
Isolator Material
Natural Rubber
Vibration Isolator Style
One Tapped Hole and One Threaded Stud
Durometer
55A
Shape
Cylindrical
Maximum Load Sideways Shear
2,941 lbf
FDA Approved
Not FDA Approved
Operating Temperature - Maximum
176 Degrees F
Mounting Style
Compression
Operating Temperature - Minimum
-40 Degrees F
Load Sideways Shear - Maximum
13,082.22 N
Load Downward Compression - Maximum
9,639.29 N

Description

Vibration-Isolating Mount, Vibration Isolator Style One Tapped Hole and One Threaded Stud, Maximum Load Downward Compression 2,167 lbf, Overall Diameter 100 mm, Height 2.95 in, Stud Length 41 mm, Maximum Load Sideways Shear 2,941 lbf, Thread Size M16, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Compressor; Motor; Pump, Resistant To Abrasion; Wear, Shape Cylindrical, Stud or Tap Material Zinc-Plated Steel, Tap Depth 16 mm
