Shop KILLARK

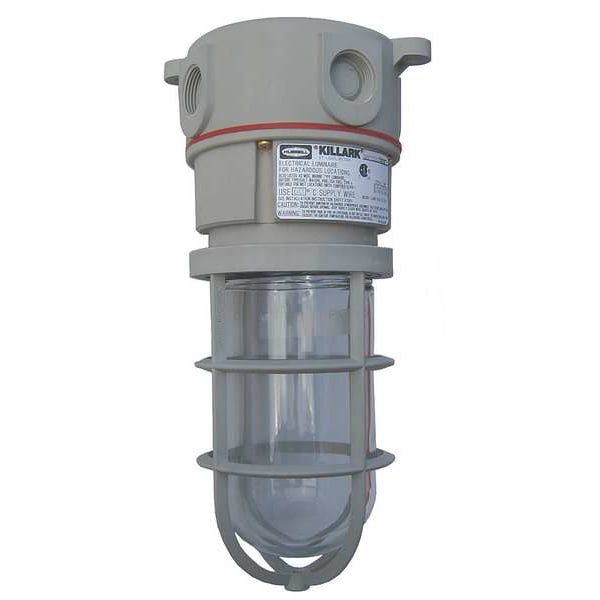

IncanLightFixture, 150W, 7 3/8"L, 4 5/8"W

  • Mfr # NV2IG15XSG

  • Zoro # G3071092

product price:
$
155.99
/ea
Free Shipping & Returns

Key Features

Standards
ABS, NEMA 3, NEMA 4, NEMA 4X
Lumens
2,087 lm
Lighting Technology
Fluorescent
Housing Material
Polyester
Voltage
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NV2IG15XSG
Zoro #
G3071092
UPC #
783936050584
Country of Origin
China

Dimensions

Length
7 3/8 in
Width
4-9/16 in
Height
12-1/4 in
Height (In.)
12-1/4
Length (In.)
7-3/8
Width (In.)
4-9/16
Nominal Height
12 1/4 in
Nominal Width
4 9/16 in
Nominal Length
7 3/8 in
Overall Length
7 3/8 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
4 5/8 in
Overall Height
12 1/4 in
Wire Rope Length
7 3/8 in

Details

Item
Incandescent Light Fixture
Standards
ABS, NEMA 3, NEMA 4, NEMA 4X
Lumens
2,087 lm
Lighting Technology
Fluorescent
Housing Material
Polyester
Voltage
120/277V AC
Fixture Wattage
150
Description/Special Features
Non-Metallic Corrosion Resistant, Designed for Indoor and Outdoor Globe Down Applications
Lamp Quantity
1
Bulb Designation
A19/A21
Suggested Lamp Item No.
2PLK4
Housing Finish
Powder Epoxy Paint
Lamp Type
Medium Base
Mounting
Ceiling
Lamp Watts
150 W
Fixture Type
Hazardous Location
Lamp Included
No
Includes
Clear Globe, Guard
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Finish
Powder Epoxy Paint
Dimmable
No
Fixture Voltage
120 to 277V AC
Ballast Quantity
1
Fixture Ballast Type
Electronic
Linkable Up To
Unlinkable
Lamp Type - Fixtures
A19, A21
IP Rating
IP66
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Lamp Watts - Fixtures
150.0
Series
NV2
Emergency Battery Backup
No
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Max. Fixture Wattage
150 W
For Bulb Shape
A19/A21
For Max. Bulb Wattage
150 W
For Bulb Type
Fluorescent
Color Temperature
Lamp Dependent
Housing Color
Gray
Number of Ballasts
1
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G, Class l, Groups llC, llB, llA, Class III, Zone 2
Mounting Location
Ceiling
Min. Ambient Temp.
-40 Degrees F
Ingress Protection Rating
66
Lumens per Watt
13 lm/W
For Number of Bulbs
1
For Bulb Base Type
Medium
Temperature Code
T2B
Max. Ambient Temp.
104 Degrees F
UL/CSA/ETL Listed
CSA US Certified, UL Marine Rated
CA Title 24 Compliant
No
Warranty
2ACC6
Hazardous Location Rating
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group F, G
Ambient Temperature - Minimum
-40 Degrees F
Dimming Method
No Dimming
Lumen Selectable
Not Selectable
Light Output
2,087 lm
Maximum Fixture Wattage
150 W
Ambient Temperature - Maximum
104 Degrees F
Mounting Style
Ceiling

Description

7 3/8 in, Lamp Dependent, 2,087 lm, 13 lm/W, Max. Fixture Wattage 150 W, Mounting Style Ceiling, For Bulb Type Fluorescent, Dimmable No, NV2
