No Product Image Available
Shop SHAT-R-SHIELD

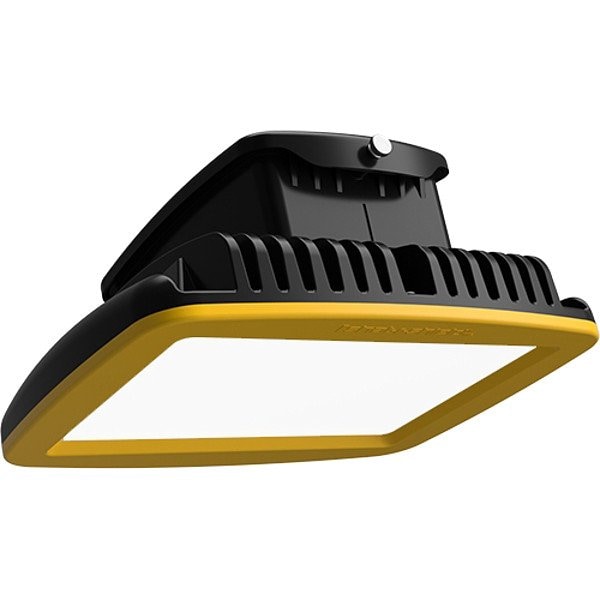

Hazardous Light Fixture

  • Mfr # 030HY50STFRVLYHZ00SCH701

  • Zoro # G315827474

product price:  $1,302.99
/ea
Free Shipping & Returns

Key Features

Standards
ABS Type Approved, cUL us, DLC, NSF, UL 1598, UL 1598A, UL 844, USDA
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
30 W
Rated Life
100,000 hr
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
030HY50STFRVLYHZ00SCH701
Zoro #
G315827474
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
10 1/4 in
Overall Height
5 5/8 in
Overall Depth
13 in
Nominal Length
1 ft
Overall Length
13 in

Details

Item
Hazardous Light Fixture
Standards
ABS Type Approved, cUL us, DLC, NSF, UL 1598, UL 1598A, UL 844, USDA
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
30 W
Rated Life
100,000 hr
Fixture Lens Material
Polycarbonate
Color Temperature
5000K
Light Output
5,300 lm
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group F, G, Class III, Div 1 and 2
High Pressure Sodium Wattage Equivalency
100 W
Housing Color
Black
Lumen Selectable
Not Selectable
Operating Temperature - Maximum
113 Degrees F
Color Selectable
Not Selectable
Number of Hubs
1
Metal Halide Wattage Equivalency
100 W
LED Driver Style
Constant Voltage
Light Technology
LED
For Location
Outdoor
Incandescent Wattage Equivalency
200 W
Light Distribution Type - IESNA
Type V
Light Distribution Type - NEMA
NEMA 7x7
Lens Material
Polycarbonate
IP Rating
IP66, IP69K
NEMA Enclosure Rating
4X, 5
Linkable
No
Light Distribution Shape
7X7
Linkable Up To
Unlinkable
Dimming Method
0-10V
Includes
3/4 in Connector Hub
For Bulb Type
Integrated LED
Mounting Style
Suspended
Ambient Temperature - Maximum
149 Degrees F
Series
Incoplas LED Hybrid HazLoc
Lens Shape
Flat
Maximum Fixture Wattage
30 W
Hazardous Location Rating
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group F, G, Class III, Div 1 and 2
Mounting Hardware Type
3/4 in Connector Hub
For Use With
Haz
Bulb Included
Integrated LED
Emergency Battery Backup
No
Dimmable
Yes
Temperature Code
T3C, T4
Light Color
Daylight
Lighting Technology
LED
Sensor Type
No Sensor
Color Rendering Index
80

Description

Hazardous Light Fixture
