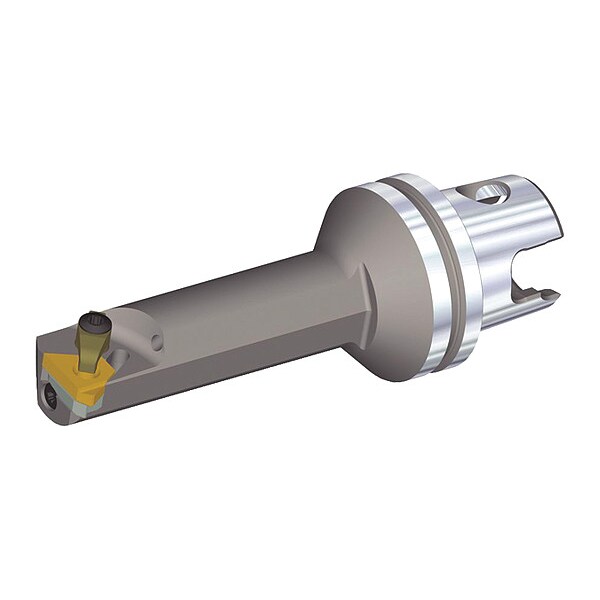

Indexable Thread Cutting Unit Head, KM32TSS20FLSER16, 99.95mm L
Mfr # KM32TSS20FLSER16
Zoro # G3571329
product price: $546.99
/ea
Free Shipping & Returns
Key Features
Overall Length
99.95mm
ANSI Code
KM32TSS20FLSER16
Insert Size
16
Rake
-1.5 Degrees Axial, -15 Degrees Radial
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM32TSS20FLSER16
Zoro #
G3571329
UPC #
4056544854223
Country of Origin
United States
Dimensions
Overall Length
99.95mm
Insert Size
16
Max. Bore Depth
60.00mm
Min. Bore Dia.
25.00mm
Connection Size
32.00mm
Details
Item
Indexable Thread Cutting Unit Head
ANSI Code
KM32TSS20FLSER16
Rake
-1.5 Degrees Axial, -15 Degrees Radial
Cutting Direction
Right Hand
Toolholder Style
KM32TSS
Insert Style
LT16NR
Standards
ISO 26622
Cutting Application
Laydown Threading
Coolant Fed
Coolant Through
Center to Cutting Tip
13.00mm
ISO Number
KM32TSS20FLSER16
Insert Holding Type
Top and Hole Clamp
Number of Coolant Holes
1
Description
Indexable Thread Cutting Unit Head, KM32TSS, Overall Length 99.95mm, KM32TSS20FLSER16, 13.00mm, Coolant Through, Laydown Threading, Right Hand
