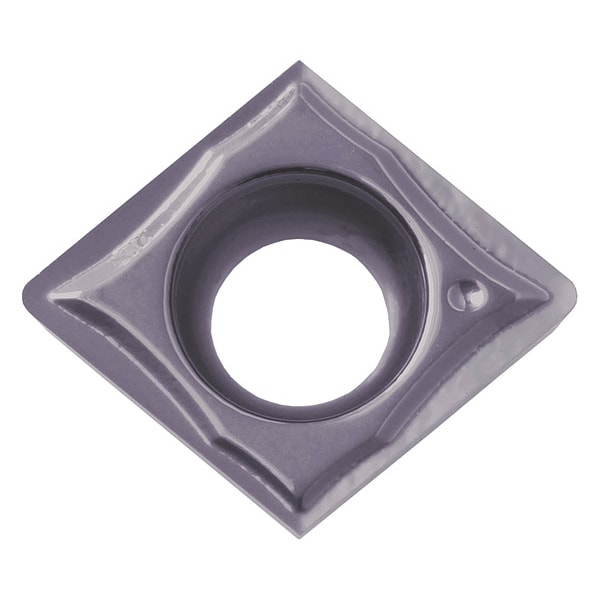

Diamond Turning Insert, Diamond, 2, .2

Mfr # CCGT21502MFPGQPR1225
Zoro # G7983405

15.49

Sold in multiples of 10 for $154.90

Key Features

Insert Shape

Diamond

Inscribed Circle

1/4 in

Chip-Breaker

Yes

Corner Radius

0.0039 in

Rake

Positive

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CCGT21502MFPGQPR1225
Zoro #: G7983405
UPC #: -
Country of Origin: Multiple

Dimensions

Corner Radius: 0.0039 in
Thickness: 3/32 in
Through Hole Inside Dia.: 0.1102"

Details

Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 1/4 in
Chip-Breaker: Yes
Rake: Positive
ISO Number: CCGT060201MFP-GQ
Cutting Direction: Neutral
Features: Superior Wear and Oxidation Resistance
Finish - Machining: Megacoat
Primary Material Application ISO Code: P
Secondary Material Application: Stainless Steel
Coating Process: PVD
Clearance Angle: 7 Degrees
Insert Holding Type: Screw
Material - Machining: Carbide
Measurement System: Fractional Inch
Hole Type: 40 Degrees to 60 Degrees Countersink Through Hole
Cutting Application: Boring, External Turning, Facing, Internal Facing, Interrupted Cutting, Sub-Spindle Turning
Shape: Diamond
Manufacturer Grade: PR1225
Cutting Edge: Minus Tolerance Corner Radius; Polished; Sharp Edge
Included Angle: 80 Degrees
Number of Cutting Edges: 2
Secondary Material Application ISO Code: M
Chip-Breaker Style: Medium Finishing
General Shape: Diamond
ANSI Code: CCGT21502MFPGQ
Chip-Breaker Code: GQ
Primary Material Application: Steel

Description

Diamond Turning Insert, Chip-Breaker Code GQ, Inscribed Circle 1/4 in, Megacoat, ANSI Code CCGT21502MFPGQ, Chip-Breaker Style Medium Finishing, Clearance Angle 7 Degrees , Coating Process PVD

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
