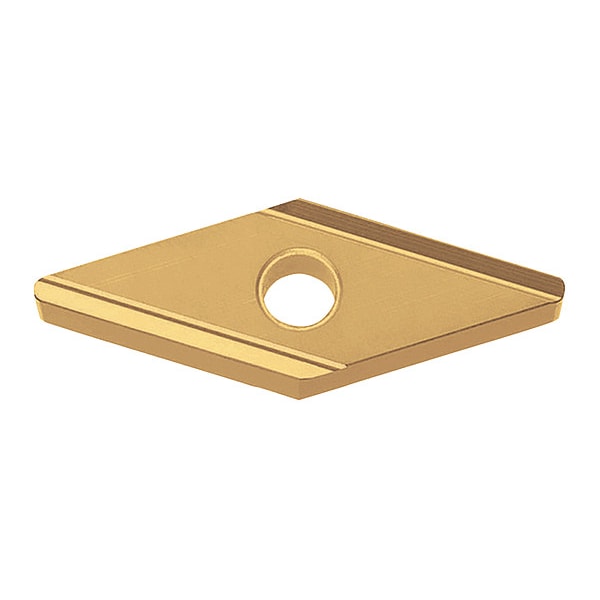

Diamond Turning Insert, Diamond, 3, 2

Name: Diamond Turning Insert, Diamond, 3, 2
Brand: Kyocera
SKU: G7418365
Price: 275.90 USD
Availability: InStock

27.59

/ea

Sold in multiples of 10 for $275.90

Insert Shape

Diamond

Inscribed Circle

3/8 in

Chip-Breaker

Corner Radius

1/32 in

Rake

Negative

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: VNGG332RPV720
Zoro #: G7418365
UPC #: -
Country of Origin: China
Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 3/8 in
Chip-Breaker: No
Rake: Negative
ISO Number: VNGG160408R
Cutting Direction: Right Hand
Features: Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Hole Type: Straight Hole
Finish - Machining: Megacoat Nano
Coating Process: PVD
General Shape: Diamond
Number of Cutting Edges: 4
Clearance Angle: 0 Degrees
Included Angle: 35 Degrees
Cutting Application: Copying, External Turning, Facing, Undercutting
Primary Material Application: Steel
Manufacturer Grade: PV720
Shape: Diamond
Measurement System: Fractional Inch
Secondary Material Application ISO Code: M
Primary Material Application ISO Code: P
ANSI Code: VNGG332R
Insert Holding Type: Screw
Material - Machining: Cermet
Material Grade - Machining: TiCN Component
Secondary Material Application: Stainless Steel

Diamond Turning Insert, Inscribed Circle 3/8 in, Megacoat Nano, ANSI Code VNGG332R, Clearance Angle 0 Degrees , Coating Process PVD
