Shop KYOCERA

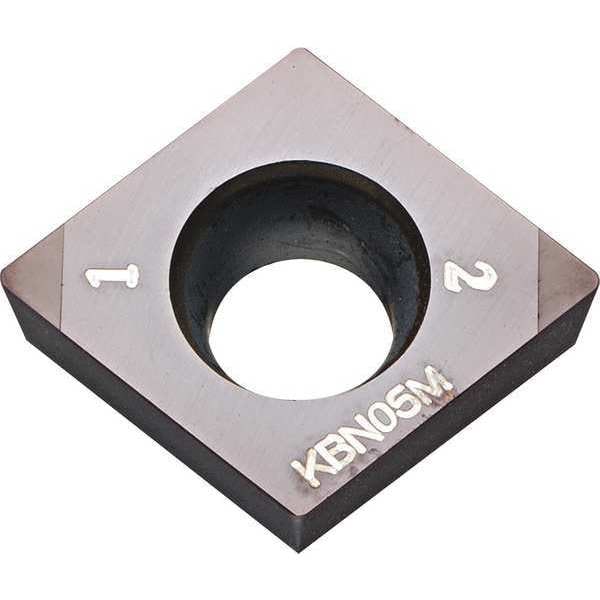

Diamond Turning Insert, Diamond, 3, CCMW, 2, CBN

  • Mfr # CCMW3252S00525MES

  • Zoro # G7435709

product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CCMW
Inscribed Circle
3/8 in
Insert Size
3252
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CCMW3252S00525MES
Zoro #
G7435709
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
3252
Corner Radius
1/32 in
Nose Radius
0.0313"
Insert Thickness
0.156"
Mounting Hole Dia.
0.173"
Thickness
5/32 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCMW
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
KBN05M
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
CCMW09T308S01225MES
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
For Use With
Mfr. No. ACLCR/L-3, SCLCR/L-3, S-SCLCL09
Coating
Megacoat
Super Alloy (S) Compatibility
No
Mounting Style
Rigid Clamp
No. of Edges
2
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
No
ANSI Number
CCMW3252S00525MES
Hardened (H) Compatibility
Yes
Relief Angle
7 Degrees
Workpiece Compatibility
Hardened (H)
Steel (P) Compatibility
No
Shape
Rhombic
Measurement System
Fractional Inch
Finish - Machining
Megacoat Nano
ANSI Code
CCMW3252S00525MES
Insert Holding Type
Screw
Primary Material Application
Hardened Steel
Primary Material Application ISO Code
H
Cutting Application
Turning
Chip-Breaker Code
MES
Number of Cutting Edges
2
Features
Heat Resistant
Clearance Angle
7 Degrees
Included Angle
80 Degrees
Manufacturer Grade
KBN05M
Material - Machining
CBN
Material
CBN
Style
CCMW

Description

Diamond Turning Insert, Chip-Breaker Code MES, Inscribed Circle 3/8 in, Megacoat Nano, ANSI Code CCMW3252S00525MES, Clearance Angle 7 Degrees
