Shop KYOCERA

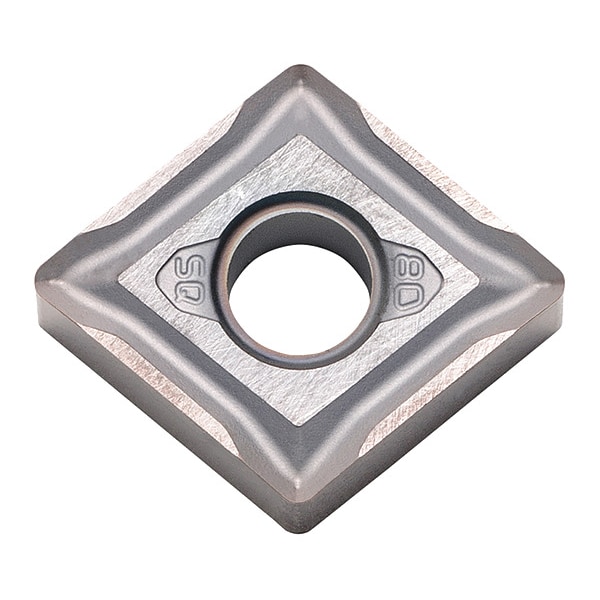

Diamond Turning Insert, Diamond, 4, 3

  • Mfr # CNMG433SQPR005S

  • Zoro # G7429285

product price:  $12.15
/ea
Sold in multiples of 10 for $121.50

Key Features

Insert Shape
Diamond
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Corner Radius
3/64 in
Rake
Negative
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CNMG433SQPR005S
Zoro #
G7429285
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
3/64 in
Thickness
3/16 in
Through Hole Inside Dia.
0.2031"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNMG120412SQ
Cutting Direction
Neutral
Features
Improved Thermal Conductivity by Optimum Distribution of WC Coarse Grains in the Substrate, Resists Heat Concentration at the Cutting Edge to Promote Stable Machining
General Shape
Diamond
Measurement System
Fractional Inch
Chip-Breaker Code
SQ
Finish - Machining
Megacoat Hard
Coating Process
PVD
ANSI Code
CNMG433SQ
Primary Material Application
High-Temperature Alloys
Hole Type
Straight Hole
Chip-Breaker Style
Medium Finishing
Cutting Application
Boring, Continuous to Interrupted Cutting, External Turning, Facing, Internal Facing
Manufacturer Grade
PR005S
Clearance Angle
0 Degrees
Insert Holding Type
Screw
Material - Machining
Carbide
Number of Cutting Edges
4
Shape
Diamond
Included Angle
80 Degrees
Primary Material Application ISO Code
S

Description

Diamond Turning Insert, Chip-Breaker Code SQ, Inscribed Circle 1/2 in, Megacoat Hard, ANSI Code CNMG433SQ, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process PVD

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
