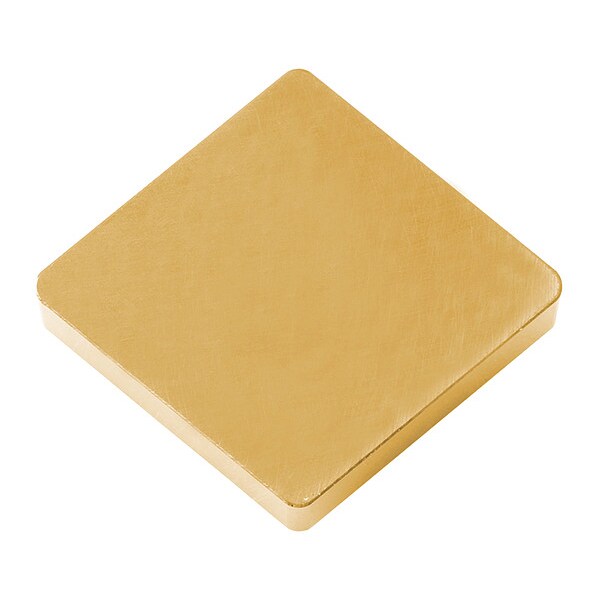

Diamond Turning Insert, Diamond, 4, 4

Name: Diamond Turning Insert, Diamond, 4, 4
Brand: Kyocera
SKU: G7964426
Price: 297.90 USD
Availability: InStock

29.79

/ea

Sold in multiples of 10 for $297.90

Insert Shape

Diamond

Inscribed Circle

1/2 in

Chip-Breaker

Corner Radius

1/16 in

Rake

Negative

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: CNG454T00625A66N
Zoro #: G7964426
UPC #: -
Country of Origin: Multiple
Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 1/2 in
Chip-Breaker: No
Rake: Negative
ISO Number: CNGN120716T01525
Cutting Direction: Neutral
Measurement System: Fractional Inch
Material Grade - Machining: Al2O3+TiC Component
Secondary Material Application ISO Code: H
Included Angle: 80 Degrees
Number of Cutting Edges: 4
Primary Material Application: Cast Iron
Clearance Angle: 0 Degrees
Material - Machining: Ceramic
General Shape: Diamond
Cutting Application: External Turning, Facing, Finishing, Semi-Roughing to Finishing
Hole Type: No Hole
Insert Holding Type: Clamp
Manufacturer Grade: A66N
Primary Material Application ISO Code: K
ANSI Code: CNG454T00625
Shape: Diamond
Finish - Machining: TiN
Secondary Material Application: Hardened Steel

Diamond Turning Insert, Inscribed Circle 1/2 in, TiN, ANSI Code CNG454T00625, Clearance Angle 0 Degrees
