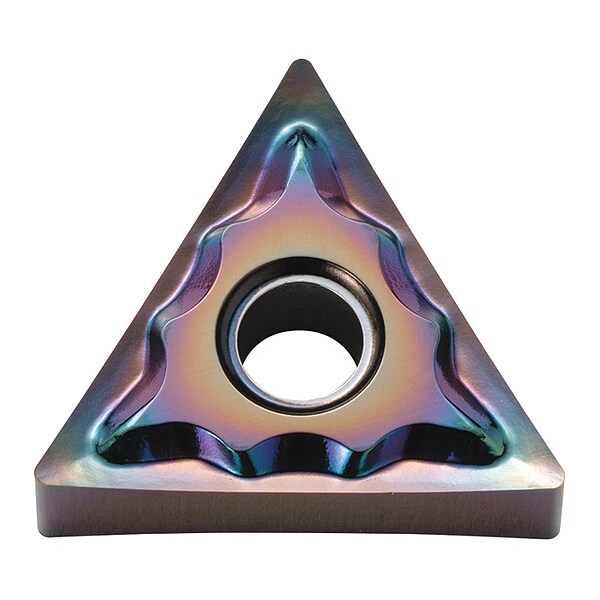

Kyocera Diamond Turning Insert, Triangle, 3, 2 TNGG332AHPDL010 - main

Diamond Turning Insert, Triangle, 3, 2

  • Mfr # TNGG332AHPDL010

  • Zoro # G7434018

product price: $23.75
/ea
Sold in multiples of 10 for $237.50

Key Features

Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNGG332AHPDL010
Zoro #
G7434018
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.1500"

Details

Item
Diamond Turning Insert
Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Negative
ISO Number
TNGG160408AH
Cutting Direction
Neutral
Features
For Excellent Surface Finish During Continuous Aluminum Machining, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating
Shape
Triangle
Chip-Breaker Code
AH
Finish - Machining
DLC
Cutting Application
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Manufacturer Grade
PDL010
Insert Holding Type
Screw or Clamp
Material - Machining
Carbide
Primary Material Application ISO Code
N
General Shape
Triangle
ANSI Code
TNGG332AH
Measurement System
Fractional Inch
Cutting Edge
Sharp Edge
Chip-Breaker Style
Medium Roughing
Included Angle
60 Degrees
Clearance Angle
0 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Number of Cutting Edges
6
Hole Type
Straight Hole

Description

Diamond Turning Insert, Chip-Breaker Code AH, Inscribed Circle 3/8 in, DLC, ANSI Code TNGG332AH, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees
