Shop LDI INDUSTRIES

Precision Metering System, Grease, 4 Feed

  • Mfr # PMP530-04

  • Zoro # G1741661

product price:
$
2,761.99
/ea
Free Shipping & Returns

Key Features

Air Inlet Pressure
25 to 125 psi
Includes
Timer
For Use With
Most Types/Grades of Grease
Overall Height
19.8 in
Overall Width
9 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PMP530-04
Zoro #
G1741661
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
19.8 in
Overall Width
9 in
Overall Depth
6.6 in
Air Inlet Size
1/8 in NPT

Details

Item

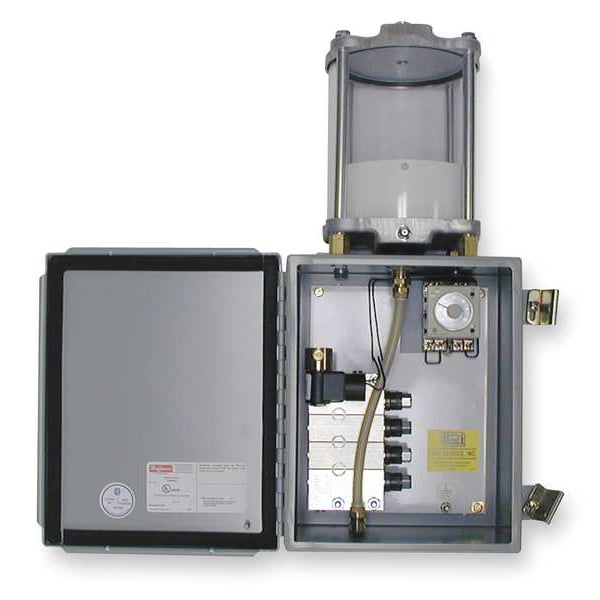

Precision Metering Lubrication System
Air Inlet Pressure
25 to 125 psi
Includes
Timer
For Use With
Most Types/Grades of Grease
Number of Feeds
4
Application
For Applications Requiring up to Four Separate Lubrication Points to Be Greased
Operation
Air-Operated
Output
0 to 0.012 cu in/cycle/feed
Material
Aluminum, Brass Steel, Transparent Polymer
Mounting Type
NEMA Box
Reservoir Capacity
75 cu in
Features
Stationary, Automatic, Each Feed Pump Is Independantly and Externally Adjustable Using a Micrometer Thread 0.02 Pitch Adjustment
Seal Material
Buna-N, Viton
Air Intake Pressure - Minimum
25 psig
Air Intake Connection Type
NPT
Output Volume - Maximum
0.01 cu in
Discharge Pressure - Maximum
300 psi
Air Intake Pressure - Maximum
125 psig
Connection Type
NPT
Operating Temperature - Maximum
120 Degrees F
Compatible Chemicals
Grease
Housing Material - Pumps
Aluminum, Brass, Steel, Transparent Polymer
Ratio
9:00

Description

Precision Metering Lubrication System, Lubrication Type Grease, Reservoir Capacity 75 cu in, Number of Feeds 4, Output Volume - Maximum 0.01 cu in, Connection Size 1/8 in, Connection Type NPT, Discharge Pressure - Maximum 300 psi, Pump Ratio 9:0, Includes Timer, Mounting Type NEMA Box, Air Intake Connection Size 1/8 in, Air Intake Connection Type NPT, Air Intake Pressure - Maximum 125 psig, Air Intake Pressure - Minimum 25 psig, Body Material Aluminum, Brass, Steel, Transparent Polymer
