Shop LDI INDUSTRIES

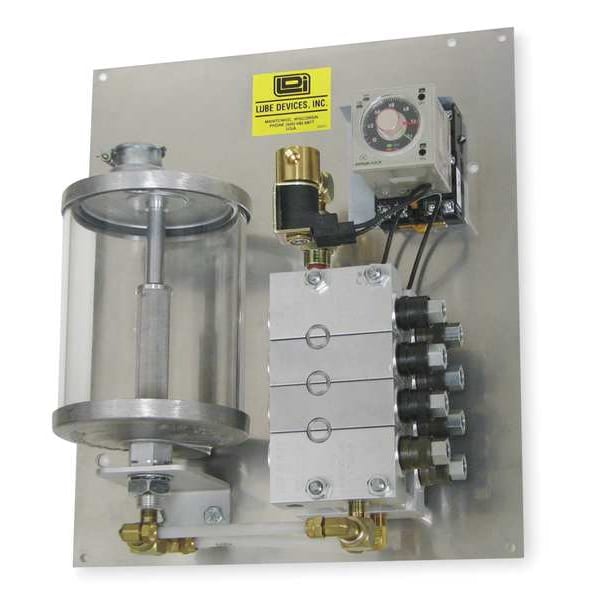

Precision Metering System, Grease, 6 Feed

  • Mfr # PMP350-06
  • Zoro # G2280056
product price:
$
2,995.99
/ea
Free Shipping & Returns

Key Features

Air Inlet Pressure
25 to 125 psi
Includes
Timer
Overall Height
14.8 in
Mounting Type
NEMA Panel
Application
For Applications Requiring up to Six Separate Lubrication Points to Be Greased
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PMP350-06
Zoro #
G2280056
UPC #
-
Country of Origin
United States
Item
Precision Metering Lubrication System
Air Inlet Pressure
25 to 125 psi
Includes
Timer
Mounting Type
NEMA Panel
Application
For Applications Requiring up to Six Separate Lubrication Points to Be Greased
Lubrication Type
Grease
Output
0 to 0.012 cu in/cycle/feed
Number of Feeds
6
Reservoir Capacity
168 cu in
For Use With
Most Types/Grades of Grease
Operation
Air-Operated
Features
Stationary, Automatic, Each Feed Pump Is Independantly and Externally Adjustable Using a Micrometer Thread 0.02 Pitch Adjustment
Material
Aluminum, Brass Steel, Transparent Polymer
Pump Ratio
9:0
Body Material
Aluminum, Brass, Steel
Seal Material
Buna-N, Viton
Air Intake Pressure - Minimum
25 psig
Air Intake Pressure - Maximum
125 psig
Connection Type
NPT
Air Intake Connection Type
NPT
Discharge Pressure - Maximum
300 psi
Output Volume - Maximum
0.01 cu in
Operating Temperature - Maximum
120 Degrees F
Compatible Chemicals
Grease
Housing Material - Pumps
Aluminum, Brass, Steel
Ratio
9:00

Description

Precision Metering Lubrication System, Lubrication Type Grease, Reservoir Capacity 168 cu in, Number of Feeds 6, Output Volume - Maximum 0.01 cu in, Connection Size 1/8 in, Connection Type NPT, Discharge Pressure - Maximum 300 psi, Pump Ratio 9:0, Includes Timer, Mounting Type NEMA Panel, Air Intake Connection Size 1/8 in, Air Intake Connection Type NPT, Air Intake Pressure - Maximum 125 psig, Air Intake Pressure - Minimum 25 psig, Body Material Aluminum, Brass, Steel
