Shop LDI INDUSTRIES

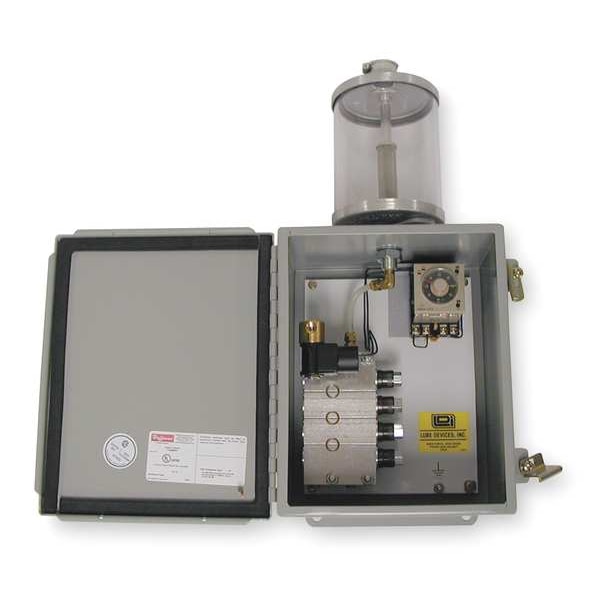

Precision Metering System, Oil, 4 Feed

  • Mfr # PMP540-04

  • Zoro # G2320744

product price:  $2,286.99
/ea
Free Shipping & Returns

Key Features

Air Inlet Pressure
25 to 125 psi
Output
0 to 0.012 cu in/cycle/feed
Pump Ratio
9:0
Operation
Air-Operated
Application
Oil Applications Requiring up to 4 Separate Points to Be Oiled
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PMP540-04
Zoro #
G2320744
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
9 in
Overall Depth
6.4 in
Overall Height
18 in
Connection Size
1/8 in
Air Intake Connection Size
1/8 in

Details

Item
Precision Metering Lubrication System
Air Inlet Pressure
25 to 125 psi
Output
0 to 0.012 cu in/cycle/feed
Pump Ratio
9:0
Operation
Air-Operated
Application
Oil Applications Requiring up to 4 Separate Points to Be Oiled
Material
Aluminum, Brass Steel, Transparent Polymer
Lubrication Type
Oil
Number of Feeds
4
Mounting Type
NEMA Box
Reservoir Capacity
1 qt
For Use With
Oil Applications Requiring Up To 4 Separate Points To Be Oiled
Includes
Timer
Max. Output Pressure
300 psi
Features
Stationary, Automatic, Each Feed Pump Is Independantly and Externally Adjustable Using a Micrometer Thread 0.02 Pitch Adjustment
Body Material
Aluminum, Brass, Steel, Transparent Polymer
Seal Material
Buna-N, Viton
Discharge Pressure - Maximum
300 psi
Air Intake Pressure - Minimum
25 psig
Air Intake Connection Type
NPT
Connection Type
NPT
Operating Temperature - Maximum
120 Degrees F
Air Intake Pressure - Maximum
125 psig
Output Volume - Maximum
0.01 cu in
Max. Temp._x
120 Degrees F
Min. Air Inlet Pressure
25 psig
For Lubricant Type
Oil
Outlet Pressure Max. (PSI)
300 psi
Max. Air Inlet PSI
125 psi
Capacity
1 qt
Air Inlet (In.)
1/8 in NPT

Description

Precision Metering Lubrication System, Lubrication Type Oil, Reservoir Capacity 1 qt, Number of Feeds 4, Output Volume - Maximum 0.01 cu in, Connection Size 1/8 in, Connection Type NPT, Discharge Pressure - Maximum 300 psi, Pump Ratio 9:0, Includes Timer, Mounting Type NEMA Box, Air Intake Connection Size 1/8 in, Air Intake Connection Type NPT, Air Intake Pressure - Maximum 125 psig, Air Intake Pressure - Minimum 25 psig, Body Material Aluminum, Brass, Steel, Transparent Polymer
