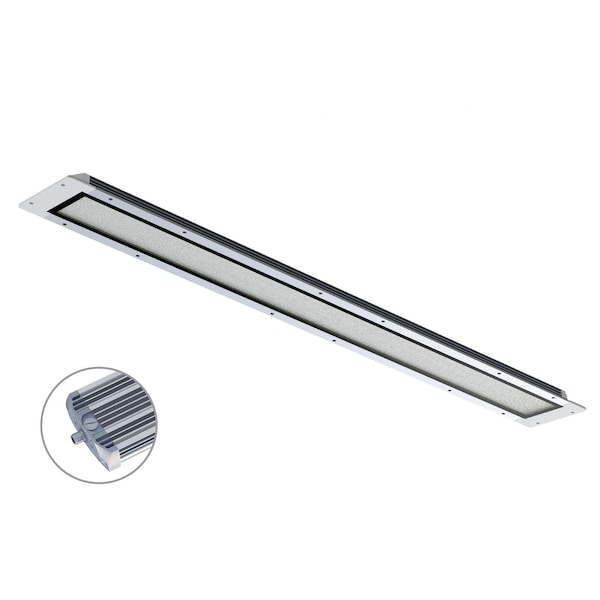

FIELDLED EVO 790 96 Recessed, 790 mm 31, 1'', 24V DC, M12-A Front Side

LED machine light FIELDLED EVO Recessed with a recessed housing of 96 mm in width, 790 mm in length and approx. 30 mm in depth. The connection via M12 connector A-coded is located on the side of the front. The integrated mounting frame with 6.5 mm drill holes for fixing has a width of 132 mm, a length of 846 mm and 5.6 mm in depth.FIELDLED EVO Recessed is a very bright luminaire for recessed shafts in machines and systems. The LED machine luminaire provides homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire can be used under harsh production conditions, such as in metal cutting. A toughened safety glass bonded into the metal housing and high-quality seals protect against chips and coolant/lubricant emulsion. The FIELDLED EVO can be retrofitted into almost any standard machine tool mounting shaft by inserting the mounting housing into the shaft and securing the luminaire via the mounting frame. The recessed luminaire draws 24V DC machine current via a reverse polarity protected M12 connector. Depending on the variant, the connection is located at the rear or at the front of the FIELDLED EVO. The recessed luminaire is available in four lengths. The recessed housing of the LED machine luminaire FIELDLED EVO has a width of 96 mm and a depth of approx. 30 mm.
