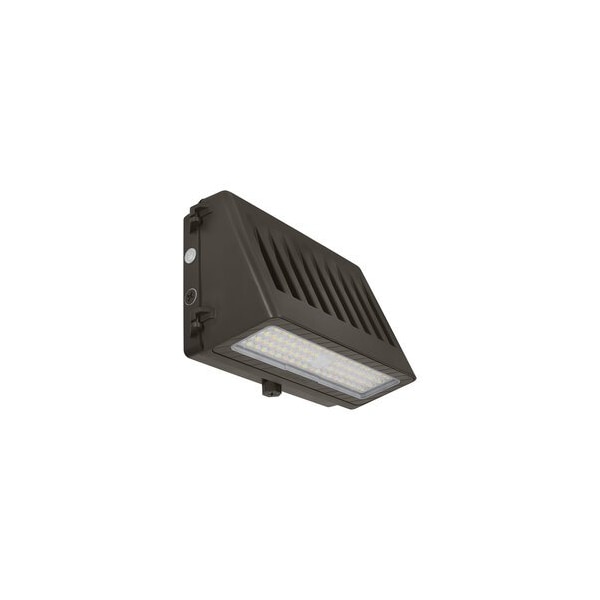

Shop LEDVANCE/ SYLVANIA

Wall Packs, LED, Surface Mount

  • Mfr # WALPAKC9AS060UNHD8SC2BZP

  • Zoro # G016065885

product price:  $129.99
/ea
Free Shipping & Returns

Key Features

Features
Wall Pack Cutoff 9A, Selectable Wattage 40/50/60W, 120-347V, 0-10V Dimming, 80 Cri, Cct Selectable 3000/4000/5000K, Bronze, Photocell
Voltage
120 to 347V AC
Width
7.4 in
Height
9.40 in
Length
14.40 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WALPAKC9AS060UNHD8SC2BZP
Zoro #
G016065885
UPC #
046135658570
Country of Origin
Viet Nam

Dimensions

Width
7.4 in
Height
9.40 in
Length
14.40 in
Manufacturers Warranty Length
5 yr
Mounting Height - Maximum
15 ft
Overall Width
7 3/8 in
Overall Height
9 3/8 in
Overall Length
14 3/8 in
Knockout Size
1/2 in
Hub Size
1/2 in NPT
Nominal Length
14.40 in
Size
14.4x7.4x9.4 in
Wire Rope Length
14 3/8 in

Details

Item
Wall Packs
Features
Wall Pack Cutoff 9A, Selectable Wattage 40/50/60W, 120-347V, 0-10V Dimming, 80 Cri, Cct Selectable 3000/4000/5000K, Bronze, Photocell
Voltage
120 to 347V AC
Series
WALPAKC
Light Technology
LED
Watts
40.00/50.00/60.00 W
Lumens
6000/7500/9000
Finish
Bronze
Fixture Lens Material
Polycarbonate
Power Source
Hardwired
Standards
cULus, FCC, RoHS
Fixture Wattage
60 W
Rated Life
100,000 hr
Housing Material
Aluminum
IP Rating
IP65
Color Rendering Index
80
Color Temperature
3000K, 4000K, 5000K
Sensor Type
Photocell Included
Housing Color
Bronze
Operating Temperature - Minimum
-40 Degrees F
Includes Lamp
Integrated
Operating Temperature - Maximum
122 Degrees F
Color Selectable
Selectable
For Location
Outdoor
Lumen Selectable
Selectable
Number of Hubs
0
Light Output
6,000 lm, 7,500 lm, 9,000 lm
Number of Knockouts
4
Metal Halide Wattage Equivalency
250 W
Light Distribution Type - IESNA
Type III
Mount Type
Surface
Incandescent Wattage Equivalency
300 W, 400 W, 450 W
High Pressure Sodium Wattage Equivalency
250 W
Mounting
Surface
Type
Wall pack
Efficacy (LPW)
150 lm/W
Lumens Per Watt
150 lm/W
Fixture Rated Life
100,000 hr
Power Factor
≥0.90
Total Harmonic Distortion
< 20 %
Operating Temperature (°C)
-40 to+50 °C
Operating Temp. Range
-40 °F to 122°F
Light Distribution
< 20 %
Lamp Type
SMD
Application
Outdoor
CRI
80
Operating Temperature (°C)
-40 to+50 °C
Power Source - TS Only
Hardwired

Description

Wall Packs, Fixture Wattage 60 W, Voltage 120 to 347V AC, Light Technology LED, Color Temperature 3000K, 4000K, 5000K, Color Rendering Index 80, Includes Lamp Integrated, Rated Life 100,000 hr, Fixture Lens Material Polycarbonate, IP Rating IP65, Standards cULus, FCC, RoHS
