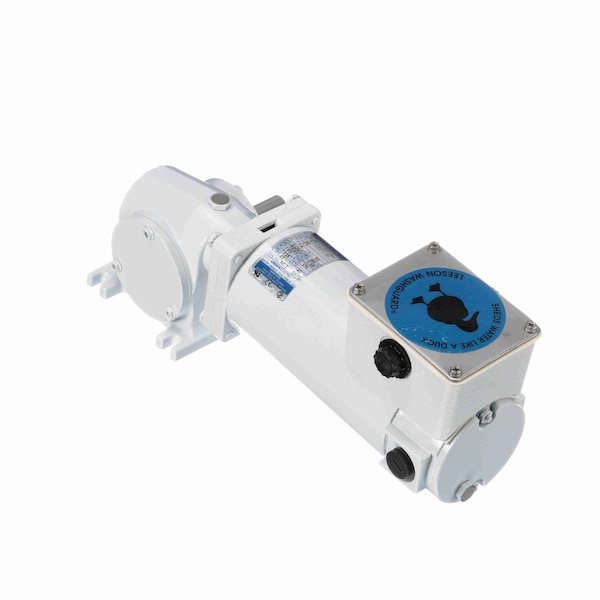

Right Angle Gearmotors, 90V
- Mfr # M1125277.00
- Zoro # G2479413
product price:Â
$
973.99
/ea
Free Shipping & Returns
Key Features
Rotation
CW/CCW
Efficiency
30.5%
Keyway Width
3/16 in
Mounting Orientation
Horizontal
Maximum Torque
135 in-lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- M1125277.00
- Zoro #
- G2479413
- UPC #
- 691720346181
- Country of Origin
- United States
Dimensions
- Keyway Width
- 3/16 in
- Overall Length
- 12.86 in
- Length Less Shaft
- 11.12 in
- Output Shaft Length
- 1 13/16 in
- Output Shaft Height
- 1.67 in
- Output Shaft Diameter
- 5/8 in
- Overall Width
- 3.84 in
- Fits Chest Size
- 303 Stainless Steel Gearbox Output Shaft, Stainless Steel Hardware, Painted with White Epoxy
- Overall Height
- 6.6 in
- Keyway Depth
- 1 1/8 in
- Length
- 12.86 in
Description
Right Angle Gearmotors, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 62 RPM, Maximum Torque 135 in-lb, Starting Torque 135 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Output Shaft Height 1.67 in, Mounting Orientation Horizontal, Gear Ratio 40:1, Input Horsepower 1/4 hp, Motor Insulation Class F, Efficiency 30.5 Percent, Output Shaft Diameter 5/8 in, Bearing Type Ball
