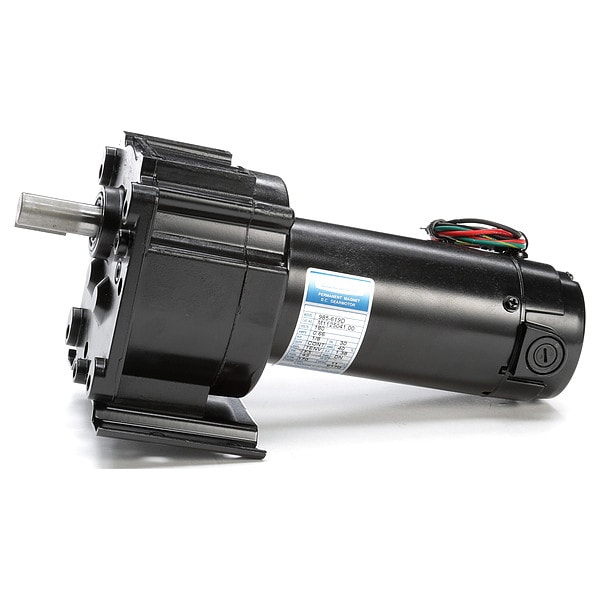

Parallel Shaft Gearmotors, 180V
- Mfr # M1125041.00
- Zoro # G804946693
product price:Â
$
681.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Type
DC Gearmotor
Shaft Orientation
Parallel
Motor Type
Permanent Magnet DC
Nameplate RPM
170 RPM
Max. Torque
43 lb-in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- M1125041.00
- Zoro #
- G804946693
- UPC #
- 691720091074
- Country of Origin
- United States
Dimensions
- Length Less Shaft
- 9.96 in
- Keyway Size Type
- 0.187" Square x 1"
- Overall Length
- 11.45 in
- Shaft Dia. (Dimension U)
- 5/8 in
- Shaft Length (Dimension V)
- 1 1/2 in
- Output Shaft Diameter
- 5/8 in
- Mount Hole Center-to-Center Width
- 4 in
- Output Shaft Height
- 3.5 in
- Keyway Width
- 3/16 in
- Overall Height
- 6.26 in
- Mount Hole Center-to-Center Length
- 1.5 in
- Output Shaft Length
- 1 1/2 in
- Keyway Depth
- 1 in
- Overall Width
- 4.08 in
- Wire Rope Length
- 11.45 in
- Length
- 11.45 in
Description
Parallel Shaft Gearmotors, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 180V DC, Motor Type Permanent Magnet DC, Nameplate Speed 170 RPM, Maximum Torque 43 in-lb, Starting Torque 43 in-lb, Overhung Load Capacity 196 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Gear Ratio 10:1, Input Horsepower 1/8 hp, Motor Insulation Class F, Efficiency 64.6 Percent, Output Shaft Diameter 5/8 in
