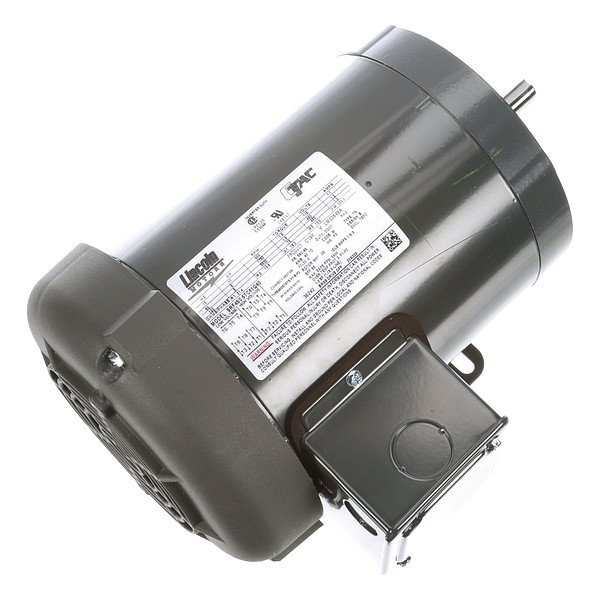

3-Phase Vector Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 1,750 Nameplate RPM

  • Mfr # LM22649

  • Zoro # G811934935

product price:
$
746.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,750
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.4/1.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LM22649
Zoro #
G811934935
UPC #
691720988862
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 15/16 in
Overall Length
11 13/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Wire Rope Length
11 13/16 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
Vector Motor
HP
1/2
Nameplate RPM
1,750
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
2.4/1.2 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Phase
Three
Motor Application
Blowers, Fans
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
68 %
Standards
CSA Certified, UL Listed
Motor Thermal Protection
T-Stat
Motor Sub Application
General Purpose
ECM Motor Type
Constant Torque
Includes Encoder
Encoder Not Included
Removable Base
Permanently Lubricated Bearings
Duty Cycle
Continuous
Max. Speed
1,750 RPM
Speed Range
4:1
Maximum Speed
1,750 RPM
Frequency
60 Hz
Full Load Current @ 60 Hz
2.4/1.2 A
Efficiency Rating
NEMA Standard Efficiency
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Vector Motor

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 1/2 HP, Nameplate RPM 1,750, No. of Speeds Not Applicable, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Max. Speed 1,750 RPM, Speed Range 4:1, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
