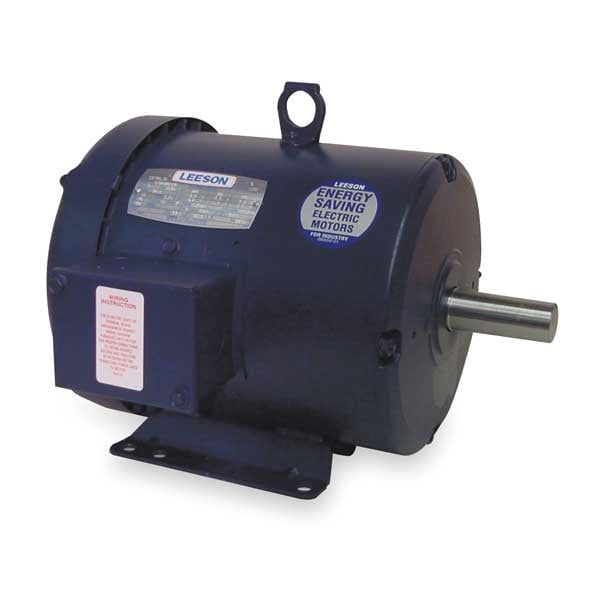

Leeson 50 Hz Mtr, 3-Ph, 5hp, 2850, 220/380-440, 184T 131481.00 - main

50 Hz Mtr, 3-Ph, 5hp, 2850, 220/380-440, 184T

  • Mfr # 131481.00

  • Zoro # G0568276

product price: $779.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
184T
Phase
Three
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
131481.00
Zoro #
G0568276
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/4 in
Length Less Shaft
11 3/4 in
Shaft Dia.
1 1/8 in
Overall Length
14 7/16 in

Details

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
184T
Phase
Three
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Ambient Temperature
40 Degrees C
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Item
General Purpose Motor
RPM Range
1801-3000
Ins. Class
F
Motor Application
General Purpose
Motor Shaft Design
Keyed
Hz
50 Hz
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Voltage Compatibility
220/380/440V AC
Nominal Efficiency
84 %
Max. Ambient Temp.
40 Degrees C
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Standards
CE Certified, CSA Certified, UL Listed
Weight
79 lb
Full Load Amps @ 50Hz
12.8/7.4/6.4 A
Motor Frame Material
Steel
Voltage @ 50Hz
220/380/440V AC
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
5 hp
RPM @ 50Hz
2,850 RPM
NEMA Design
B

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, Not Applicable HP, Nameplate RPM Not Applicable, Frame 184T, Voltage Not Applicable, 50 Hz Hz, Three Phase, Full Load Amps Not Applicable, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor Not Applicable, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, 1801-3000
