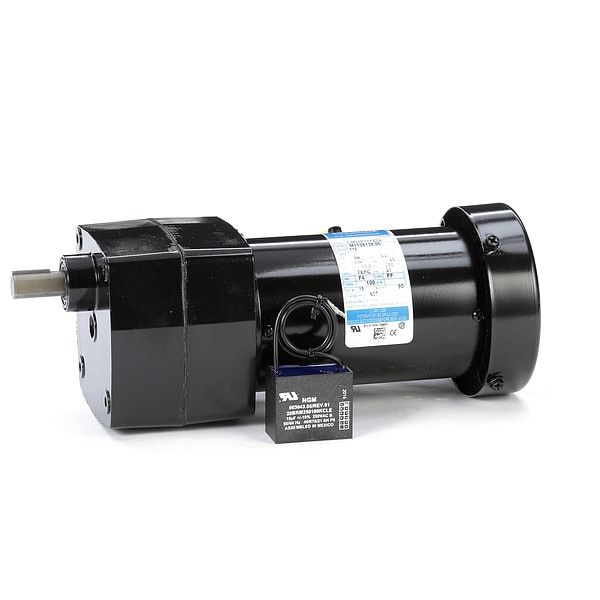

AC Gearmotor, 100 in-lb Max. Torque, 19 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

  • Mfr # M1125128.00

  • Zoro # G105687301

product price:  $775.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1125128.00
Zoro #
G105687301
UPC #
691720091272
Country of Origin
United States

Dimensions

Length Less Shaft
8.86 in
Overall Length
10.42 in
Shaft Dia. (Dimension U)
1/2 in
Dimension X
3.23 in
Overall Height
3.97 in
Mount Hole Center-to-Center Width
3.75 in
Overall Width
5.3 in
Mount Hole Center-to-Center Length
1.88 in
Keyway Width
1/8 in
Output Shaft Diameter
1/2 in
Keyway Depth
3/4 in
Output Shaft Length
1 in
Wire Rope Length
10.42 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
19 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.9 A
Standards
CE, CSA, UL
Input HP
1/15 hp
Hz
60 Hz
Phase
Single
Gear Material
Steel
Gear Type
Helical
Application
Power Transmission
Max. Ambient Temp.
40 Degrees C
Lubrication
Semi-Fluid Grease
Bearings
Needle
Gears
Helical Gear
Gear Ratio
90:1
Insulation Class
F
Service Factor
1
Reversible Shaft Output
Yes
Rotation
CW/CCW
Thermal Protection
None
Motor Type
Permanent Split Capacitor
Duty Cycle
Continuous
Shaft Orientation
Inline
Capacitor Required
Yes
Overhung Load
155 lb
Output Shaft Type
Hollow
Maximum Ambient Temperature
104 Degrees F
Frequency
60 Hz
Features
Permanent Split Capacitor design rated for 115VAC 60 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steelOptional conduit box and PZ gearmotor mounting bracket available
Mount Type
Horizontal or Vertical Shaft Down
Input Horsepower
0.067 hp
Motor Duty Class
Continuous
Maximum Output Speed
19 RPM
Motor Insulation Class
F
Maximum Torque
100 in-lb
Includes Capacitor
Capacitor Included
Overhung Load Capacity
155 lb
Number of Output Shafts
1
Motor Enclosure
Totally Enclosed Fan-Cooled
Output Location
Left Hand
Mounting Orientation
Horizontal, Vertical with Shaft Down
Bearing Type
Needle
Operating Voltage
115V AC
Full Load Current
0.9 A
Nameplate Speed
19 RPM

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 19 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 90:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Capacitor Included, Motor Insulation Class F, Motor Duty Class Continuous
