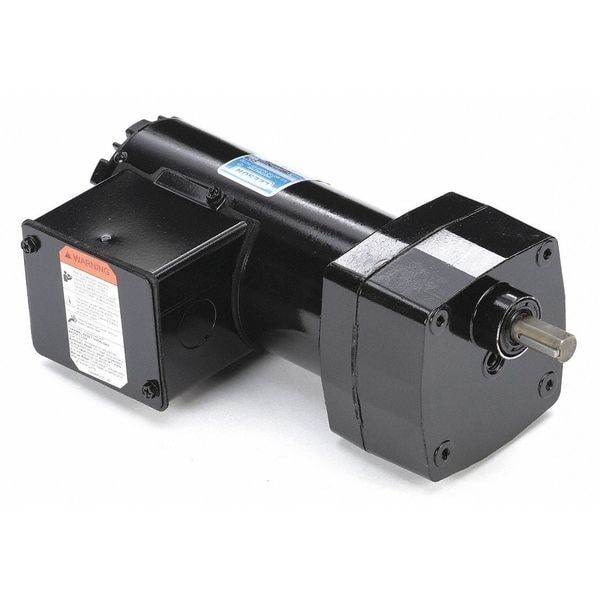

AC Gearmotor, 56 in-lb Max. Torque, 57 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase

  • Mfr # M1125283.00

  • Zoro # G0287463

product price:  $759.00
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
56 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1125283.00
Zoro #
G0287463
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
9.83 in
Keyway Size Type
1/4 sq in x 3/4 in
Shaft Length (Dimension V)
1 in
Height (Dimension O)
3.75 in
Dimension C
10.83 in
Dimension X
2.43 in
Dimension S
0.25 in
Dimension AA
0.88 in
Keyway Size
1/4" Square x 3/4"
Dimension AB
3.43 in
Shaft Dia. (Dimension U)
1/2 in
Dimension U
1/2 in
Dimension N
1.56 in
Overall Length
10.03 in
Output Shaft Length
1 in
Output Shaft Diameter
1/2 in
Overall Height
3.75 in
Overall Width
5.3 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
56 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
57 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.4 A
Standards
CE Y, CSA Y, UL
Input HP
1/15 hp
Enclosure
TENV
Service Factor
1
Rotation
CW/CCW
Gear Material
Hardened Steel
Voltage
208-230
Thermal Protection
None
Mounting
All Position Except Shaft Up
Insulation Class
F4
RPM Range
51 to 75
Hz
60 Hz
Motor Type
3-Phase
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Finish
Black High Gloss Enamel
Lubrication
Permanent Heavy Duty Gear Oil
No Load RPM
60 RPM
Phase
Three
Gear Case Material
Die Cast Aluminum
Gears
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Shaft Orientation
Parallel
Housing
Rolled Steel
Seals
Heavy Duty, Single Lip, Spring Loaded
Gear Ratio
30:1
Overhung Load
155 lb
Max. Ambient Temp.
40 Degrees C
Application
Inverter Duty
Housing Material
Rolled Steel
Motor Frame Designation
31
Mount Type
Horizontal or Vertical Shaft Down
Motor Insulation Class
F
AGMA Gear Class
Class 9
Motor Enclosure
Totally Enclosed Nonventilated
Maximum Output Speed
57 RPM
Full Load Current
0.4 A
Input Horsepower
0.067 hp
Inverter Rated
Yes
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Frequency
60 Hz
Mounting Orientation
Horizontal, Vertical with Shaft Down
Nameplate Speed
57 RPM
Brake Type
None
Motor Duty Class
Continuous
Housing Material Finish
Black High Gloss Enamel
Operating Voltage
208-230V AC
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Overhung Load Capacity
155 lb
No Load Speed
60 RPM
Maximum Torque
56 in-lb
Number of Output Shafts
1
Keyway Type
1/4 sq in x 3/4 in
Inverter Rating
30:1
Maximum Ambient Temperature
104 Degrees F

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 57 RPM, Maximum Torque 56 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 30:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
