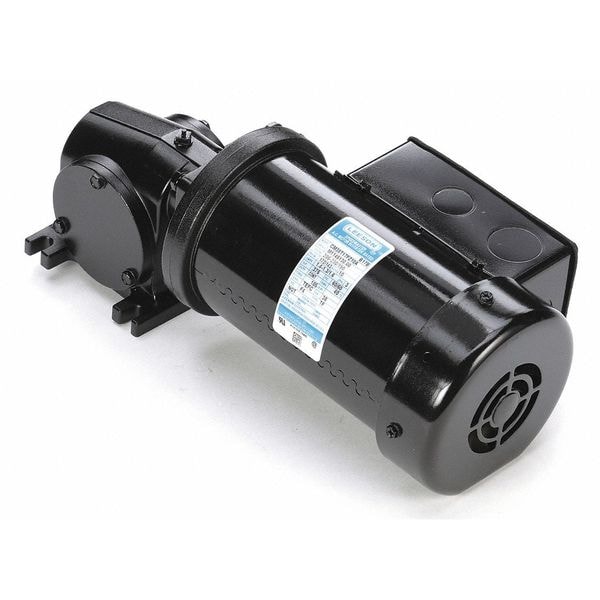

AC Gearmotor, 105 in-lb Max. Torque, 172 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase

  • Mfr # M1145130.00

  • Zoro # G0704767

product price:
$
869.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
105 in-lb
Gearmotor Shaft Type
Single Right
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1145130.00
Zoro #
G0704767
UPC #
691720346969
Country of Origin
United States

Dimensions

Length Less Shaft
12.31 in
Keyway Size Type
0.18 sq in x 1 in
Dimension E
1.5 in
Shaft Dia. (Dimension U)
5/8 in
Shaft Length (Dimension V)
1.5 in
Dimension AB
3.73 in
Height (Dimension O)
5.22 in
Dimension A
3.84 in
Dimension S
0.187 in
Dimension N
1.8 in
Dimension BA
1.75 in
Dimension C
12.31 in
Dimension F
3 in
Dimension AA
0.88 in
Dimension D
1.67 in
Dimension B
3.88 in
Dimension X
4-1/2 in
Keyway Size
0.18" Square x 1"
Dimension H
0.31 in
Dimension U
5/8 in
Overall Length
12.31 in
Mount Hole Center-to-Center Width
3.25 in
Overall Height
5.2 in
Mount Hole Center-to-Center Length
3 in
Overall Width
5.81 in
Output Shaft Diameter
5/8 in
Output Shaft Length
1 13/16 in
Wire Rope Length
12.31 in
Length
12.31 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
105 in-lb
Gearmotor Shaft Type
Single Right
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
172 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
1.3 A
Standards
CE Y, CSA Y, UL
Input HP
3/8 hp
Thermal Protection
None
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Lubrication
Permanent Heavy Duty Gear Oil
Hz
60 Hz
Phase
Three
Gear Material
Bronze, Hardened Steel
Voltage
208-230
RPM Range
151 to 200
Rotation
CW/CCW
Motor Type
3-Phase
Application
Inverter Duty
Insulation Class
F4
Overhung Load
235 lb
No Load RPM
179 RPM
Housing
Rolled Steel
Gear Case Material
Die Cast Aluminum
Enclosure
TEFC
Gear Ratio
10:1
Service Factor
1
Max. Ambient Temp.
40 Degrees C
Gears
Hardened Steel Worm with Bronze Worm Wheel
Finish
Black High Gloss Enamel
Mounting
All Position Except Shaft Up
Shaft Orientation
Right Angle
Gear Type
Worm, Worm Wheel
Seals
Heavy Duty, Single Lip, Spring Loaded
Housing Material
Rolled Steel
Output Location
Right Hand
Maximum Ambient Temperature
104 Degrees F
Operating Voltage
203-230V AC
Housing Material Finish
Black High Gloss Enamel
Motor Insulation Class
F
Nameplate Speed
172 RPM
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Brake Type
None
Motor Frame Designation
38
Maximum Output Speed
172 RPM
Full Load Current
1.4-1.3 A
No Load Speed
179 RPM
Maximum Torque
105 in-lb
Input Horsepower
0.375 hp
Motor Duty Class
Continuous
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Number of Output Shafts
1
Overhung Load Capacity
235 lb
Motor Enclosure
Totally Enclosed Fan-Cooled
Frequency
60 Hz
Mounting Orientation
Horizontal, Vertical with Shaft Down
Keyway Type
0.18 sq in x 1 in
Mount Type
Horizontal or Vertical Shaft Down
Inverter Rating
10:1
Inverter Rated
Yes

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 172 RPM, Maximum Torque 105 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 203-230V AC, Inverter Rated Yes, Gear Ratio 10:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Motor Duty Class Continuous, Application Inverter Duty
