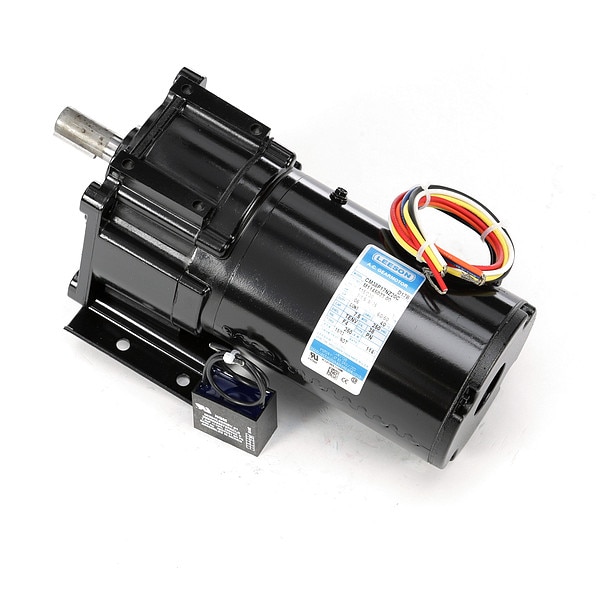

AC Gearmotor, 250 in-lb Max. Torque, 15 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

  • Mfr # M1145023.00

  • Zoro # G705687282

product price:  $825.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
250 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M1145023.00
Zoro #
G705687282
UPC #
691720092064
Country of Origin
United States

Dimensions

Length Less Shaft
8.96 in
Dimension X
3.5 in
Shaft Dia. (Dimension U)
5/8 in
Overall Length
13.67 in
Overall Height
5.13 in
Overall Width
5.63 in
Mount Hole Center-to-Center Width
4 in
Keyway Depth
1 1/16 in
Output Shaft Length
1 1/2 in
Mount Hole Center-to-Center Length
1.5 in
Output Shaft Diameter
5/8 in
Keyway Width
15/79 in
Output Shaft Height
3.51 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
250 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
15 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
1 A
Standards
CE, CSA, UL
Input HP
1/15 hp
Application
Power Transmission
Rotation
CW/CCW
Phase
Single
Overhung Load
407 lb
Insulation Class
F
Bearings
Needle
Max. Ambient Temp.
40 Degrees C
Thermal Protection
None
Gears
Helical Gear
Gear Material
Steel
Gear Ratio
114:1
Motor Type
Permanent Split Capacitor
Hz
60/50 Hz
Capacitor Required
Yes
Shaft Orientation
Inline
Lubrication
Semi-Fluid Grease
Service Factor
1
Duty Cycle
Continuous
Reversible Shaft Output
Yes
Gear Type
Helical
Bearing Type
Needle
Features
Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available
Motor Enclosure
Totally Enclosed Fan-Cooled
Output Location
Left Hand
Maximum Output Speed
15 RPM
Output Shaft Type
Hollow
Input Horsepower
0.067 hp
Motor Insulation Class
F
Includes Capacitor
Capacitor Included
Mount Type
Horizontal or Vertical Shaft Down
Frequency
50 Hz, 60 Hz
Nameplate Speed
15 RPM
Full Load Current
1.0/0.50 A
Maximum Ambient Temperature
104 Degrees F
Mounting Orientation
Horizontal, Vertical with Shaft Down
Number of Output Shafts
1
Maximum Torque
250 in-lb
Overhung Load Capacity
407 lb
Motor Duty Class
Continuous
Operating Voltage
115V AC

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 15 RPM, Maximum Torque 250 in-lb, Overhung Load Capacity 407 lb, Rotation CW/CCW, Output Shaft Height 3.51 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 114:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Capacitor Included, Motor Insulation Class F
