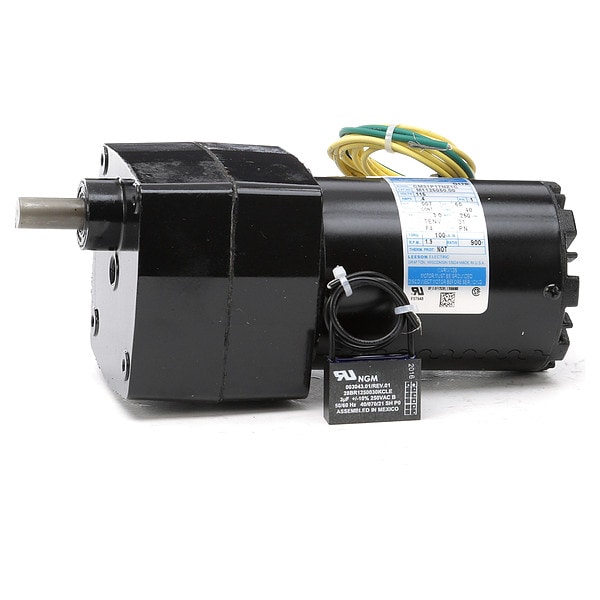

AC Gearmotor, 100 lb-in Max. Torque, 2 RPM Nameplate RPM, 115V Voltage, Single Phase

  • Mfr # M1125050.00

  • Zoro # G204853065

product price:
$
761.00
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 lb-in
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1125050.00
Zoro #
G204853065
UPC #
691720091111
Country of Origin
United States

Dimensions

Length Less Shaft
7.15 in
Keyway Size Type
0.125" Square x 0.78"
Shaft Length (Dimension V)
1 in
Shaft Dia. (Dimension U)
1/2 in
Overall Length
8.71 in
Dimension X
3.23 in
Overall Height
3.97 in
Output Shaft Height
3 in
Overall Width
3.75 in
Output Shaft Length
1 in
Mount Hole Center-to-Center Width
3.75 in
Keyway Width
1/8 in
Mount Hole Center-to-Center Length
1.88 in
Keyway Depth
3/4 in
Keyway Length
1/8 in
Output Shaft Diameter
1/2 in
Wire Rope Length
8.71 in
Length
8.71 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 lb-in
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
2 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.4 A
Standards
CSA, UL
Input HP
1/100 hp
Insulation Class
F
Gears
Steel
Shaft Orientation
Parallel
Phase
Single
Starting Torque
100 in-lb
Thermal Protection
None
Motor Type
Permanent Split Capacitor
Lubrication
Semi-Fluid Grease
Service Factor
1
Gear Type
Parallel
Hz
60 Hz
Duty Cycle
Continuous
Rotation
CW/CCW
Includes
PZ Gearmotor Mounting Bracket; Conduit Box
Gear Material
Steel
Max. Ambient Temp.
40 Degrees C
Overhung Load
155 lb
Bearings
Needle
Capacitor Required
Yes
Gear Ratio
900:1
Motor Duty Class
Continuous
Features
Double-shielded bearings extend the service life of the motor, Finished in high-gloss hardened black enamel paint, IRIS Inverter-rated insulation system provides superior protection against voltage spikes induced by variable frequency drives, Output shafts have needle bearings to handle high load capacities
Keyway Type
Square
Mounting Orientation
Horizontal, Vertical with Shaft Down
Full Load Current
0.4 A
Motor Enclosure
Totally Enclosed Nonventilated
Overhung Load Capacity
155 lb
Nameplate Speed
2 RPM
Number of Output Shafts
1
Includes Capacitor
Capacitor Included
Bearing Type
Needle
Motor Insulation Class
F
Mount Type
Horizontal or Vertical Shaft Down
Maximum Ambient Temperature
104 Degrees F
Maximum Torque
100 in-lb
Frequency
60 Hz
Operating Voltage
115V AC
Input Horsepower
0.01 hp
Brake Type
None
Maximum Output Speed
2 RPM

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 2 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 900:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, Motor Duty Class Continuous
