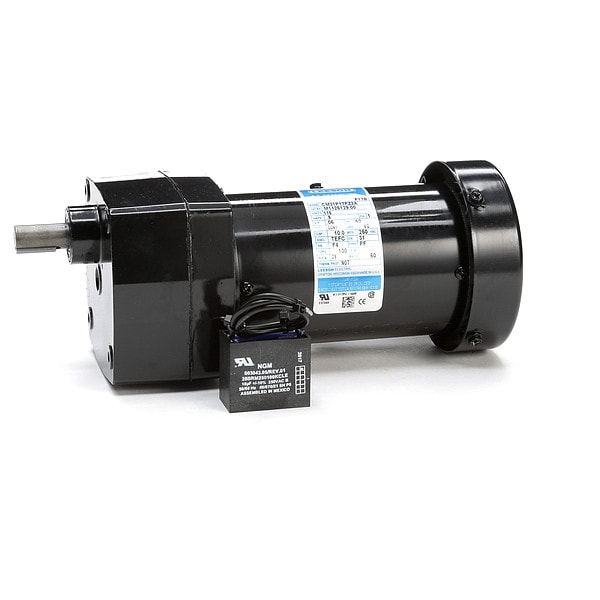

AC Gearmotor, 100 lb-in Max. Torque, 28 RPM Nameplate RPM, 115V Voltage, Single Phase

  • Mfr # M1125129.00
  • Zoro # G009824284
product price:
$
664.00
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 lb-in
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1125129.00
Zoro #
G009824284
UPC #
691720091289
Country of Origin
United States

Dimensions

Length Less Shaft
8.06 in
Keyway Size Type
0.125" Square x 0.78"
Mount Hole Center-to-Center Width
3.75 in
Output Shaft Length
1 in
Dimension X
2.43 in
Overall Height
3.97 in
Shaft Dia. (Dimension U)
1/2 in
Keyway Depth
3/4 in
Output Shaft Diameter
1/2 in
Overall Width
5.3 in
Mount Hole Center-to-Center Length
1.88 in
Shaft Length (Dimension V)
1 in
Keyway Width
1/8 in
Overall Length
9.62 in
Wire Rope Length
9.62 in
Length
9.62 in
Fits Chest Size
Permanent Split Capacitor design rated for 115VAC 60 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steelOptional conduit box and PZ gearmotor mounting bracket available

Details

Item
AC Gearmotor
Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
100 lb-in
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
28 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.9 A
Standards
CE, CSA, UL
Input HP
3/50 hp
Insulation Class
F
Brake Type
None
Keyway Type
Square
Gear Ratio
60:1
Lubrication
Semi-Fluid Grease
Maximum Output Speed
28 RPM
Phase
Single
Input Horsepower
0.06 hp
Mounting Orientation
Horizontal, Vertical with Shaft Down
Gears
Steel
Capacitor Required
Yes
Motor Insulation Class
F
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Includes Junction/Conduit Box
Yes
Shaft Orientation
Parallel
Bearing Type
Needle
Motor Enclosure
Totally Enclosed Fan-Cooled
Includes
Conduit Box, PZ Gearmotor Mounting Bracket
Features
Permanent Split Capacitor design rated for 115VAC 60 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steelOptional conduit box and PZ gearmotor mounting bracket available
Service Factor
1
Bearings
Needle
Motor Type
Permanent Split Capacitor
Maximum Ambient Temperature
104 Degrees F
Operating Voltage
115V AC
Maximum Torque
100 in-lb
Starting Torque
100 in-lb
Hz
60 Hz
Overhung Load
155 lb
Frequency
60 Hz
Full Load Current
0.9 A
Mount Type
Horizontal or Vertical Shaft Down
Overhung Load Capacity
155 lb
Motor Duty Class
Continuous
Duty Cycle
Continuous
Number of Output Shafts
1
Nameplate Speed
28 RPM
Max. Ambient Temp.
40 Degrees C
Gear Material
Steel
Includes Capacitor
Capacitor Included
Thermal Protection
None
Rotation
CW/CCW

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 28 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 60:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, Includes Junction/Conduit Box Yes, Motor Duty Class Continuous
