Shop LEESON

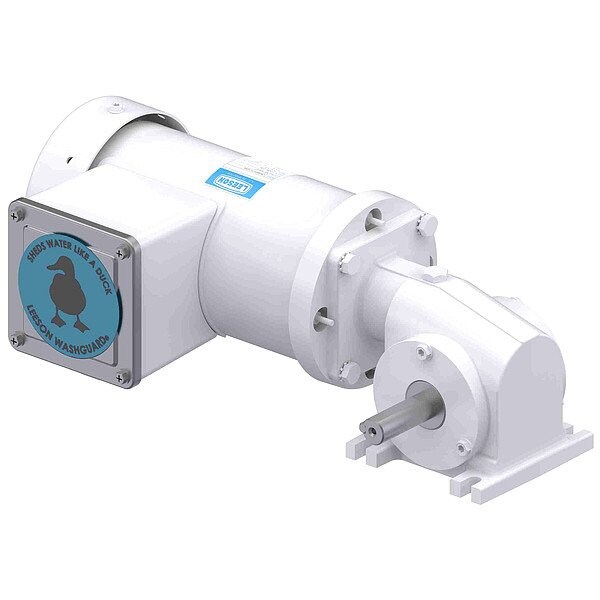

AC Gearmotor, 105 lb-in Max. Torque, 172 RPM Nameplate RPM, 190V Voltage, Three Phase

  • Mfr # M1145147.00
  • Zoro # G504924984
product price:
$
1,167.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
190V
Gearmotor Phase
Three
Gearmotor Type
AC Gearmotor
Max. Torque
105 lb-in
Gearmotor Shaft Type
Single Left
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1145147.00
Zoro #
G504924984
UPC #
691720980170
Country of Origin
United States

Dimensions

Length Less Shaft
11.04 in
Keyway Size Type
0.187" Square x 1"
Shaft Length (Dimension V)
1.5 in
Shaft Dia. (Dimension U)
5/8 in
Overall Length
12.8 in
Keyway Width
3/16 in
Keyway Depth
1 in
Output Shaft Length
1 1/2 in
Overall Width
6.68 in
Output Shaft Height
1.67 in
Output Shaft Diameter
5/8 in
Overall Height
5.19 in
Wire Rope Length
12.8 in
Length
12.8 in
Fits Chest Size
Ball Bearings used in gear housing, Hardened Worm-type gearing used, Interior components protected against corrosion, O-rings and gaskets used for sealing, Output shafts have needle bearings for high load capacities, Sealed output shafts, Shaft material coated with Teflon/Ceramic plating, UL listed and CSA certified, White epoxy painted motors

Details

Item
AC Gearmotor
Gearmotor Voltage
190V
Gearmotor Phase
Three
Gearmotor Type
AC Gearmotor
Max. Torque
105 lb-in
Gearmotor Shaft Type
Single Left
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
172 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal
Full Load Amps
1.4-1.3 A
Standards
CSA, UL
Input HP
19/50 hp
Service Factor
1
Starting Torque
105 in-lb
Lubrication
Oil Bath
Phase
Three
Overhung Load
235 lb
Shaft Orientation
Right Angle
Capacitor Required
Yes
Max. Ambient Temp.
40 Degrees C
Rotation
CW/CCW
Thermal Protection
None
Bearings
Ball
Insulation Class
F
Gear Ratio
10:1
Hz
60 Hz
Finish
White Epoxy
Duty Cycle
Continuous
Motor Type
3-Phase
Mount Type
Horizontal
Overhung Load Capacity
235 lb
Full Load Current
1.4-1.3 A
Features
Ball Bearings used in gear housing, Hardened Worm-type gearing used, Interior components protected against corrosion, O-rings and gaskets used for sealing, Output shafts have needle bearings for high load capacities, Sealed output shafts, Shaft material coated with Teflon/Ceramic plating, UL listed and CSA certified, White epoxy painted motors
Maximum Ambient Temperature
104 Degrees F
Number of Output Shafts
1
Bearing Type
Ball
Motor Duty Class
Continuous
Keyway Type
Square
Motor Insulation Class
F
Frequency
60 Hz
Housing Material Finish
White Epoxy
Brake Type
None
Output Location
Right Hand
Motor Enclosure
Totally Enclosed Fan-Cooled
Maximum Torque
105 in-lb
Mounting Orientation
Horizontal
Includes Capacitor
Yes
Input Horsepower
0.375 hp
Operating Voltage
208-230V AC
Maximum Output Speed
172 RPM
Nameplate Speed
172 RPM

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 172 RPM, Maximum Torque 105 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Output Shaft Height 1.67 in, Mounting Orientation Horizontal, Operating Voltage 208-230V AC, Gear Ratio 10:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Compatible Capacitor Manufacturer Part Number Not Applicable
