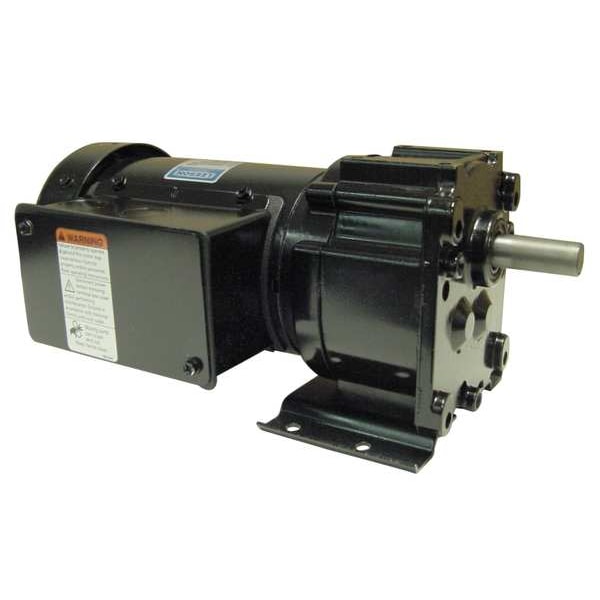

AC Gearmotor, 391 in-lb Max. Torque, 16 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase

  • Mfr # M1145122.00

  • Zoro # G2728284

product price:
$
748.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
391 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M1145122.00
Zoro #
G2728284
UPC #
691720346884
Country of Origin
United States
Item
AC Gearmotor
Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
391 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
16 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.72 A
Standards
CE Y, CSA Y, UL
Input HP
1/6 hp
Seals
Heavy Duty, Single Lip, Spring Loaded
Application
Inverter Duty
Voltage
208-230
Rotation
CW/CCW
Mounting
All Position Except Shaft Up
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Thermal Protection
None
Lubrication
Permanent Heavy Duty Gear Oil
Overhung Load
237 lb
Enclosure
TEFC
Motor Type
3-Phase
Gear Ratio
103:1
Gear Case Material
Die Cast Aluminum
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Phase
Three
Shaft Orientation
Parallel
Hz
60 Hz
No Load RPM
17 RPM
Gears
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Insulation Class
F4
RPM Range
16 to 30
Housing
Rolled Steel
Max. Ambient Temp.
40 Degrees C
Gear Material
Hardened Steel
Finish
Black High Gloss Enamel
Service Factor
1
Housing Material
Rolled Steel
No Load Speed
17 RPM
Housing Material Finish
Black High Gloss Enamel
Frequency
60 Hz
Mount Type
Horizontal or Vertical Shaft Down
Maximum Ambient Temperature
104 Degrees F
Operating Voltage
208-230V AC
Mounting Orientation
Horizontal, Vertical with Shaft Down
Keyway Type
0.18 sq in x 1 in
Full Load Current
0.72 A
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Number of Output Shafts
1
Brake Type
None
Motor Frame Designation
38
Maximum Output Speed
16 RPM
Maximum Torque
391 in-lb
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Inverter Rated
Yes
AGMA Gear Class
Class 9
Overhung Load Capacity
237 lb
Input Horsepower
0.167 hp
Motor Duty Class
Continuous
Motor Enclosure
Totally Enclosed Fan-Cooled
Nameplate Speed
16 RPM
Inverter Rating
103:1
Motor Insulation Class
F

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 16 RPM, Maximum Torque 391 in-lb, Overhung Load Capacity 237 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 103:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
