  6. AC Gearmotor, 70 in-lb Max. Torque, 288 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

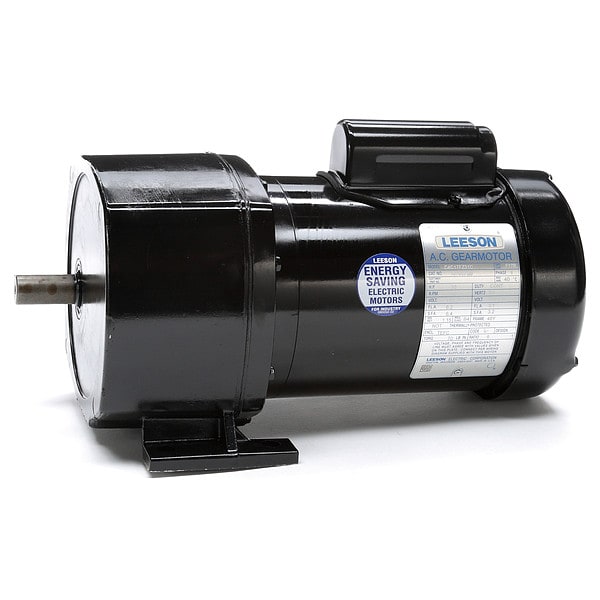

Leeson AC Gearmotor, 70 in-lb Max. Torque, 288 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase 107007.00 - main

AC Gearmotor, 70 in-lb Max. Torque, 288 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

  • Mfr # 107007.00

  • Zoro # G905687242

product price:  $1,082.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
70 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
107007.00
Zoro #
G905687242
UPC #
691720006351
Country of Origin
United States

Dimensions

Length Less Shaft
12.7 in
Overall Length
13.67 in
Shaft Dia. (Dimension U)
3/4 in
Mount Hole Center-to-Center Length
2.5 in
Overall Height
7.69 in
Keyway Length
1 in
Mount Hole Center-to-Center Width
7.13 in
Output Shaft Height
2.94 in
Overall Width
8.13 in
Output Shaft Diameter
3/4 in
Keyway Width
15/79 in
Output Shaft Length
1 1/2 in
Keyway Depth
1 1/16 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
70 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
288 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
6.2 A
Standards
CSA, UL
Input HP
1/3 hp
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Yes
Gear Type
AGMA Class 9
Lubrication
Heavy Duty Gear Oil
Gear Case Material
Die Cast Aluminum
Application
Power Transmission
Gears
AGMA Class 9
Includes
Conduit Box
Housing Material
Die Cast Aluminum
Motor Type
Capacitor-Start
Bearings
Needle
Overhung Load
400 lb
Thermal Protection
None
Housing
Die Cast Aluminum
Phase
Single
Shaft Orientation
Inline
Reversible Shaft Output
Yes
Hz
60 Hz
Gear Ratio
6:1
Duty Cycle
Continuous
Insulation Class
B
Rotation
CW/CCW
Service Factor
1.15
AGMA Gear Class
Class 9
Features
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%, All needle bearing journals are precision ground after heat treating to provide maximum fit and finish, Capacitor start designs rated for 115/230VAC 60 HZ input, Conduit box included as standard, Gears and bearings are splash lubricated with permanent, Hardened for maximum load capability, Heavy duty industrial oil seals keep lubricant in and dirt out, Heavy-Duty Gear Oil, High carbon alloy output shaft provides maximum strength and rigidity, Oversized output bearings for greater overhung load capacity and long life, Precision machined gearing, Rugged die cast Aluminium gear housing for maximum gear and bearing support
Input Horsepower
0.33 hp
Mount Type
Horizontal or Vertical Shaft Down
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
288 RPM
Bearing Type
Needle
Full Load Current
6.2/3.1 A
Overhung Load Capacity
400 lb
Frequency
60 Hz
Maximum Torque
70 in-lb
Maximum Output Speed
288 RPM
Includes Capacitor
Capacitor Included
Mounting Orientation
Horizontal, Vertical with Shaft Down
Motor Enclosure
Totally Enclosed Fan-Cooled
Includes Junction/Conduit Box
Yes
Motor Duty Class
Continuous
Motor Insulation Class
B
Operating Voltage
115/208-230V AC
Output Location
Left Hand
Number of Output Shafts
1

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 288 RPM, Maximum Torque 70 in-lb, Overhung Load Capacity 400 lb, Rotation CW/CCW, Output Shaft Height 2.94 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/208-230V AC, Gear Ratio 6:1, Output Location Left Hand, Shaft Orientation Inline, Includes Capacitor Capacitor Included, Motor Insulation Class B
